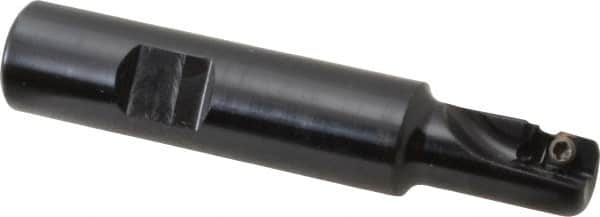

Kennametal - 1/2" Cut Diam, 9.12mm Max Depth of Cut, 5/8" Shank Diam, 82.55mm OAL, Indexable Square Shoulder End Mill - AD.T 1035 Inserts, Weldon Shank, 0° Lead Angle
Item #: 00692566
Brand: Kennametal
Model #: 2248072
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 1/2 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 15.88 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length/Projection (mm) | 82.55 |
| Overall Length/Projection (Decimal Inch) | 3.2500 |
| Lead Angle | 0 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 9.12 |
| Maximum Depth of Cut (Decimal Inch) | 0.3590 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | KISR |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.0000 |
| Weldon Flat | Yes |
| Insert Compatibility | AD.T 1035 |
| Shank Length (Decimal Inch) | 2.2500 |
| Shank Length (mm) | 57.15 |
| Maximum RPM | 18100 |
