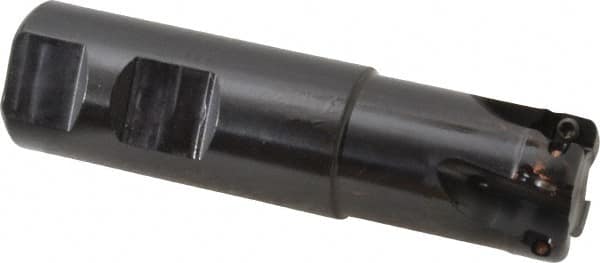

Kennametal - 1" Cut Diam, 0.357" Max Depth of Cut, 1" Shank Diam, 101.6mm OAL, Indexable Square Shoulder End Mill - AD.T 1035 Inserts, Weldon Shank, 0° Lead Angle, Through Coolant
Item #: 00692236
Brand: Kennametal
Model #: 2245292
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (mm) | 101.60 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.3570 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | KISR |
| Number of Flutes | 4 |
| Head Length (mm) | 38.10 |
| Head Length (Decimal Inch) | 1.5000 |
| Weldon Flat | Yes |
| Insert Compatibility | AD.T 1035 |
| Shank Length (Decimal Inch) | 2.5000 |
| Shank Length (mm) | 63.50 |
| Maximum RPM | 12800 |
