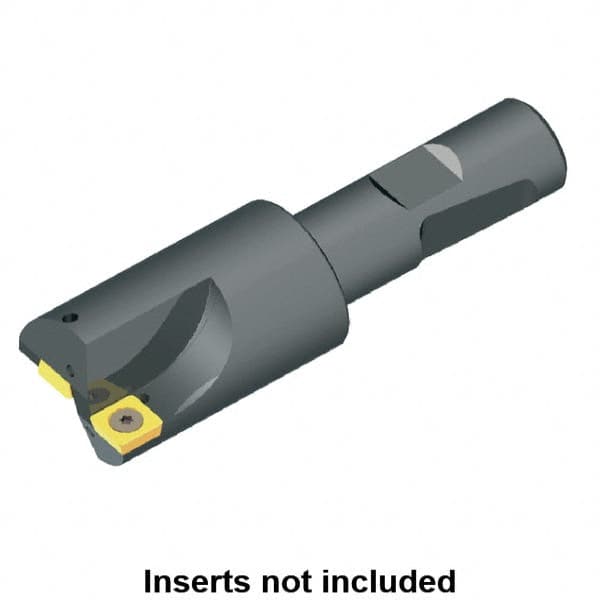

Kennametal - 0.73" Cut Diam, 8.64mm Max Depth of Cut, 3/4" Shank Diam, 3.65" OAL, Indexable Square Shoulder Centercutting End Mill - SDCW 322 Inserts, Weldon Shank, 0° Lead Angle, Through Coolant
Item #: 00691345
Brand: Kennametal
Model #: 1023609
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.7300 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.6500 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.64 |
| Maximum Depth of Cut (Decimal Inch) | 0.3400 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | Centercutting End Mill |
| Cutter Style | KICR |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.6300 |
| Weldon Flat | Yes |
| Insert Compatibility | SDCW 322 |
| Shank Length (Decimal Inch) | 2.0201 |
| Shank Length (mm) | 51.31 |
| Maximum RPM | 10500 |
