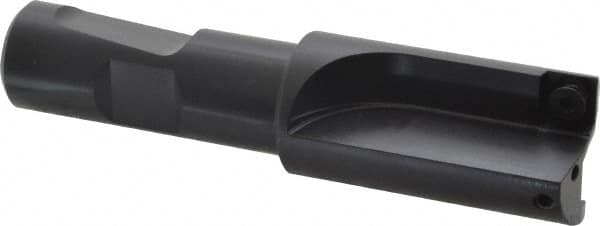

Kennametal - 1" Cut Diam, 8.64mm Max Depth of Cut, 3/4" Shank Diam, 4" OAL, Indexable Square Shoulder Centercutting End Mill - SPEB 322 Inserts, Weldon Shank, 0° Lead Angle, Through Coolant
Item #: 00691139
Brand: Kennametal
Model #: 1023604
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 19.05 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 4.0000 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 8.64 |
| Maximum Depth of Cut (Decimal Inch) | 0.3400 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Centercutting End Mill |
| Cutter Style | KICR |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.9700 |
| Weldon Flat | Yes |
| Insert Compatibility | SPEB 322 |
| Shank Length (Decimal Inch) | 2.0299 |
| Shank Length (mm) | 51.56 |
| Maximum RPM | 10000 |
