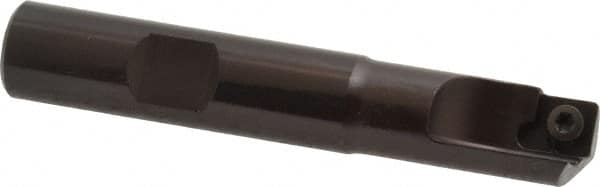

Kennametal - 1/2" Cut Diam, 7.11mm Max Depth of Cut, 1/2" Shank Diam, 3" OAL, Indexable Square Shoulder End Mill - SDEB 2615. Inserts, Cylindrical Shank, 0° Lead Angle
Item #: 00691048
Brand: Kennametal
Model #: 1023581
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Cutting Diameter (Inch) | 1/2 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length/Projection (Decimal Inch) | 3.0000 |
| Lead Angle | 0 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (mm) | 7.11 |
| Maximum Depth of Cut (Decimal Inch) | 0.2800 |
| Number of Cutter Inserts | 1 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | KICR |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.2200 |
| Weldon Flat | No |
| Insert Compatibility | SDEB 2615. |
| Shank Length (Decimal Inch) | 1.7799 |
| Shank Length (mm) | 45.21 |
| Maximum RPM | 11000 |
