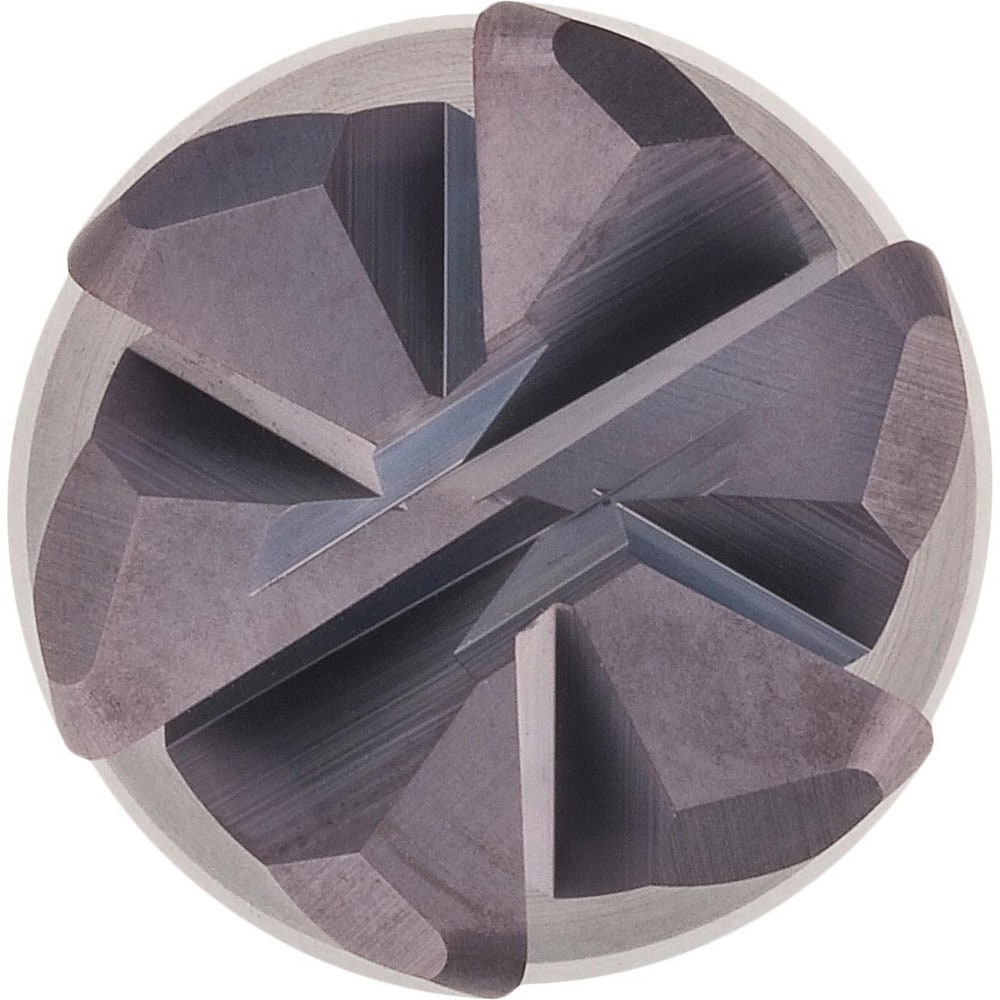

Corner Radius & Corner Chamfer End Mill Heads; Mill Diameter (mm): 10.00; Length of Cut (mm): 10.0000; Number Of Flutes: 6
Item #: 67266866
Brand: Mitsubishi
Model #: 22861535
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Length of Cut (mm) | 10.0000 |
| Number Of Flutes | 6 |
| Overall Length (mm) | 29.1000 |
| Corner Radius (mm) | 1.00 |
| Coating/Finish | AlCrN |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0394 |
| Overall Length (Decimal Inch) | 1.1457 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Centercutting | No |
| Connection Type | iMX10 |
| Flute Type | Helical |
| Minimum Helix Angle | 44 |
| Maximum Helix Angle | 45 |
| Material Grade | Solid Carbide |
| Helix Angle | Variable |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | Yes |
| Variable Helix | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3937 |
| Variable Index | Yes |
| UNSPSC Code | 27112803 |
| Mill Diameter (mm) | 10.00 |
| Length of Cut (mm) | 10.0000 |
| Number Of Flutes | 6 |
| Overall Length (mm) | 29.1000 |
| Corner Radius (mm) | 1.00 |
| Coating/Finish | AlCrN |
| End Mill Material | Carbide |
| Corner Radius (Decimal Inch) | 0.0394 |
| Overall Length (Decimal Inch) | 1.1457 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| Centercutting | No |
| Connection Type | iMX10 |
| Flute Type | Helical |
| Minimum Helix Angle | 44 |
| Maximum Helix Angle | 45 |
| Material Grade | Solid Carbide |
| Helix Angle | Variable |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Coolant Through | Yes |
| Variable Helix | Yes |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3937 |
| Variable Index | Yes |
| UNSPSC Code | 27112803 |
| MSC Part # | 67266866 |
| Mfr Part # | 22861535 |
| Country of Origin Country of Origin is subject to change | Japan |
