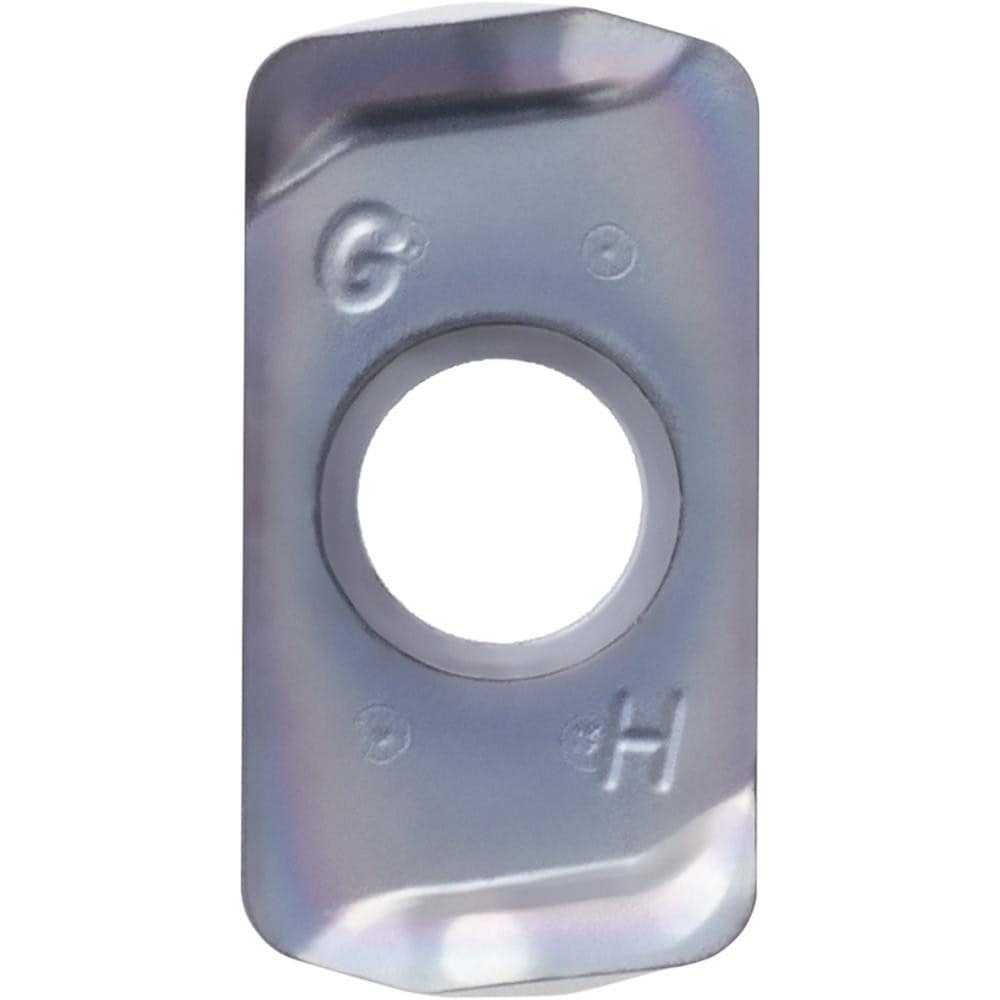

Milling Insert: LOGU221616ER-GM PR1825, Carbide
Item #: 86476819
Brand: Kyocera
Model #: TLT00115
Product Specifications
| Insert Style | LOGU |
| Insert Size | 2216 |
| Insert Material | Carbide |
| Insert Shape | Rectangle |
| Manufacturer Grade | PR1825 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.6535 |
| Thickness (mm) | 16.6000 |
| Coating/Finish | MEGACOAT NANO EX |
| Corner Radius (Inch) | 1/16 |
| Insert Hand | Right Hand |
| Series | MFLN Milling |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 6.8000 |
| Hole Diameter (Decimal Inch) | 0.2677 |
| Rake | Positive |
| Primary Workpiece Material | Mold Steel; Alloy Steel; Carbon Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Austenitic Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | LOGU221616ERGMPR1825 |
| Iso Code | LOGU221616ER-GM |
| Manufacturers Catalog Number | LOGU221616ERGMPR1825 |
| Chip Breaker | ER-GM |
| Cutting Direction | Right Hand |
| UNSPSC Code | 23291601 |
| Insert Holding Method | Screw |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 22.80 |
| Width (Decimal Inch - 4 Decimals) | 0.4921 |
| Width (mm - 2 Decimals) | 12.50 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8976 |
| Country of Origin | Japan |
