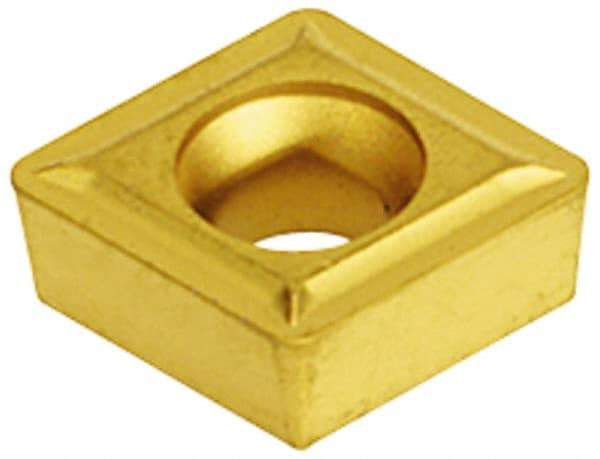

Sumitomo - CCMT32.51 ESU Grade AC2000 Carbide Turning Insert - TiN/TiCN/Al2O3/TiN Finish, 80° Diamond, 3/8" Inscr Circle, 5/32" Thick, 1/64" Corner Radius
Item #: 00566182
Brand: Sumitomo
Model #: 19BGBPE
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CCMT |
| Insert Size | 32.51 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC2000 |
| Coating | TiN/TiCN/Al2O3/TiN |
| Material Grade | C5A/C6/C7/C8 |
| Chip Breaker | ESU |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Rake Angle | 8 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Diamond |
