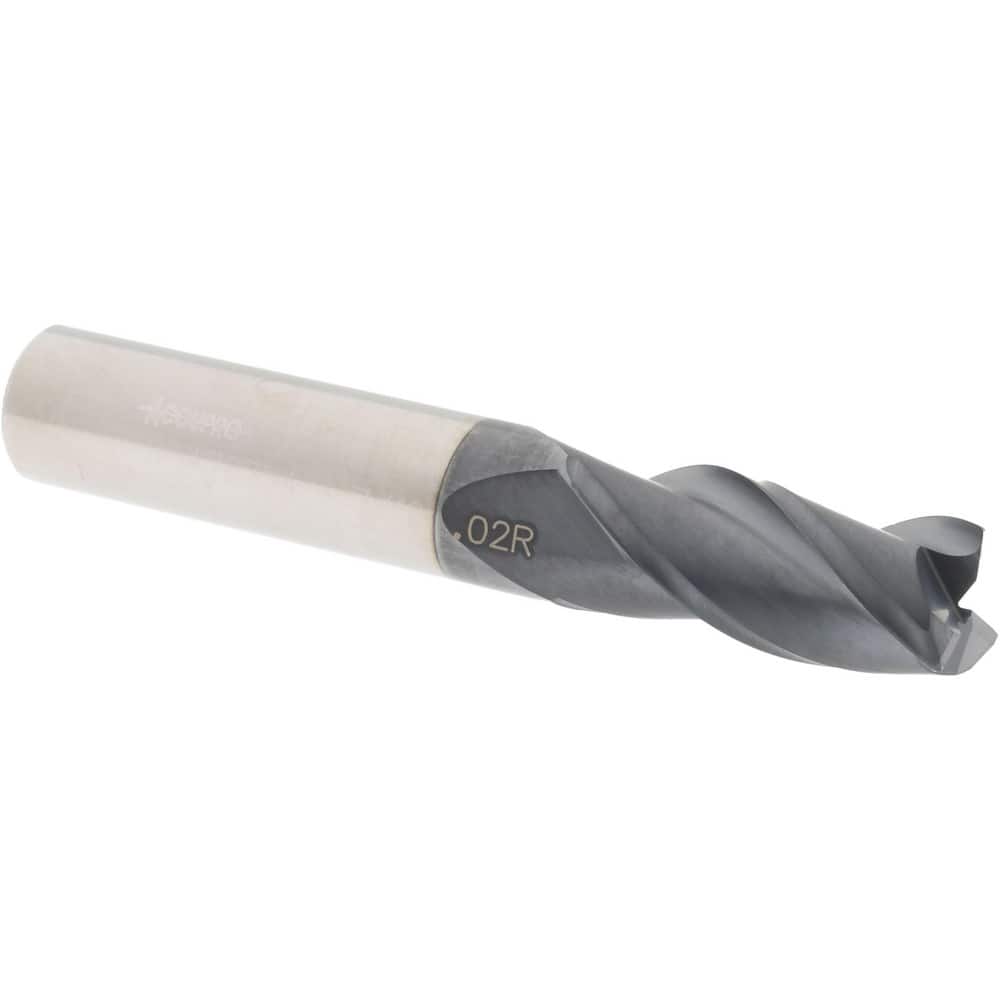

Corner Radius End Mill: 7/16″ Dia, 1″ LOC, 0.02″ Radius, 3 Flutes, Solid Carbide 2-3/4″ OAL, 7/16″ Shank Dia, 35 ° Helix, AlTiN Coated, Corner Radius End, Centercutting
Item #: 00476754
Brand: Accupro
Model #: 12179682
Product Specifications
| Mill Diameter (Decimal Inch) | 0.4375 |
| Mill Diameter (Inch) | 7/16 |
| Length of Cut (Inch) | 1 |
| Corner Radius (Decimal Inch) | 0.0200 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 35 |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (Inch) | 7/16 |
| Overall Length (Inch) | 2-3/4 |
| Corner Radius Tolerance | ?0.00150 in |
| Mill Diameter Tolerance | +0.000000 to -0.002500 in |
| Shank Diameter Tolerance | -0.0001/-0.0004 in |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Material Grade | Micrograin |
| Single Or Double End | Single |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 1.0000 |
