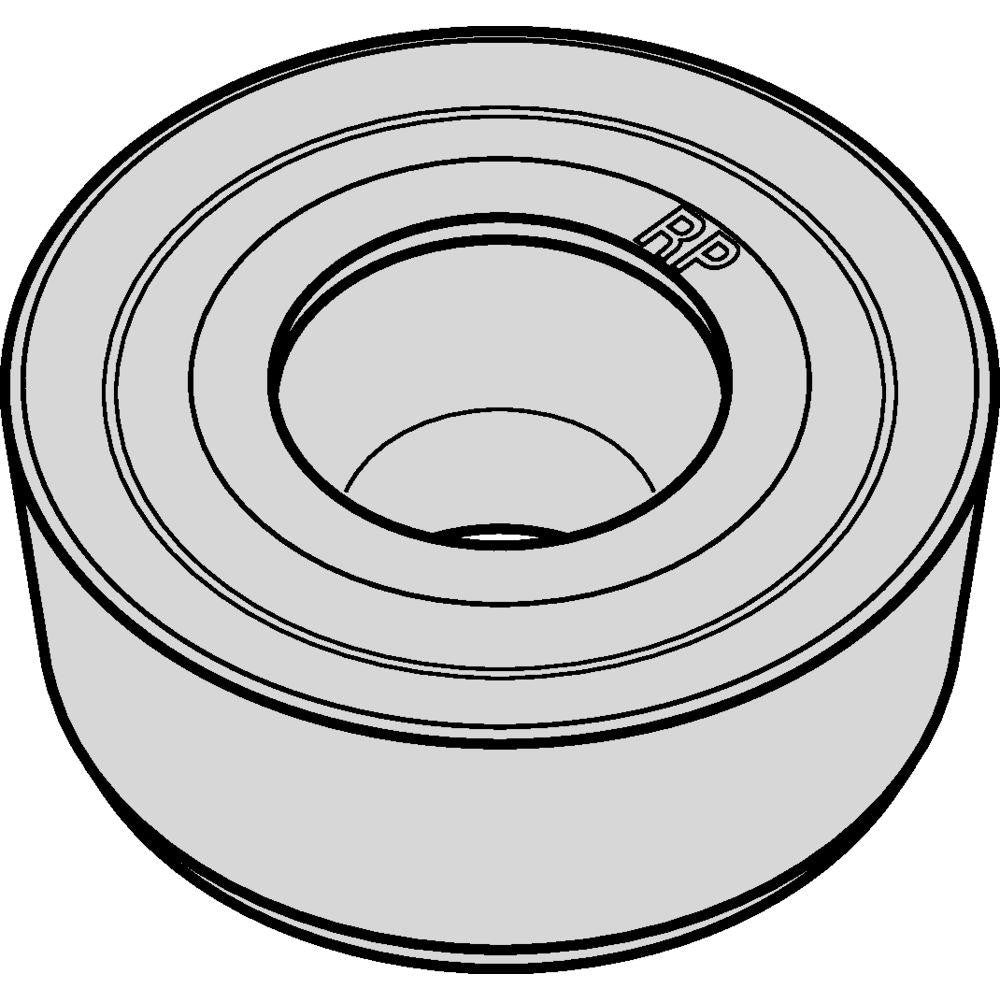

Turning Insert: RCMX3209M076 KCP25C, Carbide
Item #: 84240118
Brand: Kennametal
Model #: 7088017
Product Specifications
| ANSI Insert Code | RCMX |
| ISO Insert Code | RCMX |
| Relief Angle | 7.000 |
| Insert Style | RCMX |
| Corner Radius (mm) | 16.00 |
| Corner Radius (Decimal Inch) | 0.6299 |
| Included Angle | 360.00 |
| Manufacturer Grade | KCP25C |
| Coating/Finish | MT-TiCN |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Insert Thickness | 9.53 |
| Insert Thickness (Decimal Inch) | 0.3750 |
| Series | Pin Clamping |
| Inscribed Circle (Decimal Inch) | 1.2598 |
| Inscribed Circle (mm) | 32.00 |
| Insert Material | Carbide |
| Insert Shape | Round |
| Side Clearance | Positive |
| Number Of Cutting Edges | 1 |
| Insert Shape Code | R |
| Hole Diameter (Decimal Inch) | 0.3740 |
| Hole Diameter (Mm) ( - 0 Decimals) | 9.5000 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.2598 |
| Insert Length (mm) | 32.00 |
| Chip Breaker | 76 |
| Rake Angle | -15 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 1.2598 |
| Width (mm - 2 Decimals) | 32.00 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 3209M0 |
| Country of Origin | UNITED STATES |
