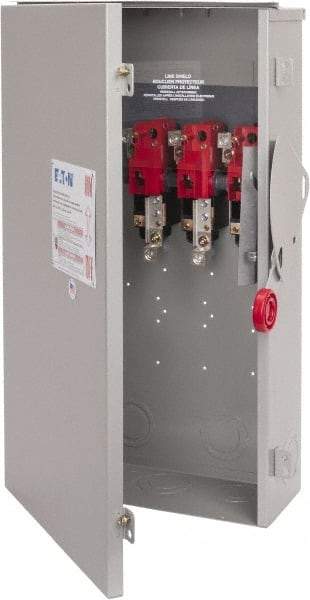

Eaton Cutler-Hammer - 200 Amp, 250 VDC, 480-600 VAC, 3 Pole Nonfused Safety Switch - NEMA 3R, 3 Phase, 50 hp at 480/600 VAC (Single Phase), 125 hp at 480 VAC, 150 hp at 600 VAC (Triple Phase), 3PST Contact Form
Item #: 00438630
Brand: Eaton Cutler-Hammer
Model #: DH364URK
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| NEMA Enclosure Rating | 3R |
| Fused | NonFused |
| Number of Poles | 3 |
| Amperage | 200 |
| Voltage | 250 VDC; 480-600 VAC |
| Horsepower at 1 Phase | 50 HP @ 480/600 VAC |
| Horsepower at 3 Phase | 125 HP @ 480 VAC, 150 HP @ 600 VAC |
| Number of Phases | 3 |
| Contact Form | 3PST |
| Number of Wires | 3 |
| Overall Height (mm) | 701.80 |
| Overall Height (Decimal Inch) | 27.6300 |
| Overall Width (mm) | 406.40 |
| Overall Width (Decimal Inch) | 16 |
| Overall Depth (Decimal Inch) | 6.1400 |
| Overall Depth (mm) | 156 |
| Standards Met | NEMA Std KS-1; UL 98; UL Listed File E5239 |
