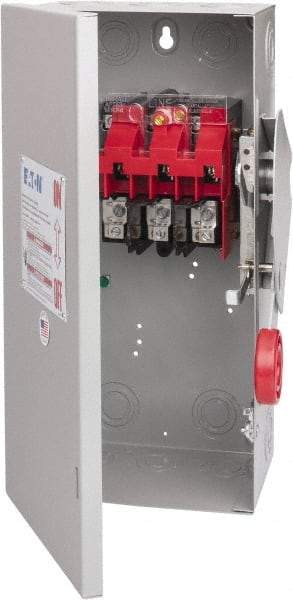

Eaton Cutler-Hammer - 30 Amp, 250 VDC, 480-600 VAC, 3 Pole Nonfused Safety Switch - NEMA 1, 1 Phase, 7-1/2 hp at 480 VAC, 10 hp at 600 VAC (Single Phase), 20 hp at 480 VAC, 30 hp at 600 VAC (Triple Phase), 3PST Contact Form
Item #: 00438564
Brand: Eaton Cutler-Hammer
Model #: DH361UGK
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| NEMA Enclosure Rating | 1 |
| Fused | NonFused |
| Number of Poles | 3 |
| Amperage | 30 |
| Voltage | 250 VDC; 480-600 VAC |
| Horsepower at 1 Phase | 7-1/2 HP @ 480 VAC, 10 HP @ 600 VAC |
| Horsepower at 3 Phase | 20 HP @ 480 VAC, 30 HP @ 600 VAC |
| Number of Phases | 1 |
| Contact Form | 3PST |
| Number of Wires | 3 |
| Overall Height (mm) | 403.40 |
| Overall Height (Decimal Inch) | 15.8800 |
| Overall Width (mm) | 206-1/2 |
| Overall Width (Decimal Inch) | 8.1300 |
| Overall Depth (Decimal Inch) | 5-1/4 |
| Overall Depth (mm) | 133.30 |
| Standards Met | NEMA Std KS-1; UL 98; UL Listed File E5239 |
