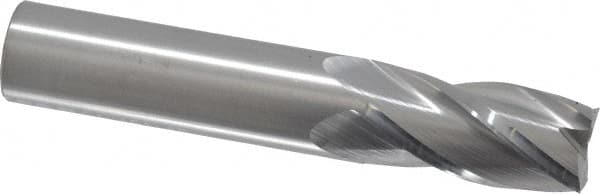

RobbJack - 5/8", 1-1/4" LOC, 5/8" Shank Diam, 3-1/2" OAL, 4 Flute, Solid Carbide Square End Mill
Item #: 00403980
Brand: RobbJack
Model #: C1-401-20
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number of Flutes | 4 |
| Length of Cut (Inch) | 1-1/4 |
| Length of Cut (Decimal Inch) | 1.2500 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 5/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 3-1/2 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30.00 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Spiral |
| Length Type | Regular |
| Mill Diameter Tolerance (Decimal Inch) | +0.000/-0.003 |
| Material Grade | C2 |
| Chipbreaker | No |
| Extended Reach | No |
| Overall Length Tolerance (Decimal Inch) | +0.060/-0.060 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0002 |
| Series/List | C1-401 |
