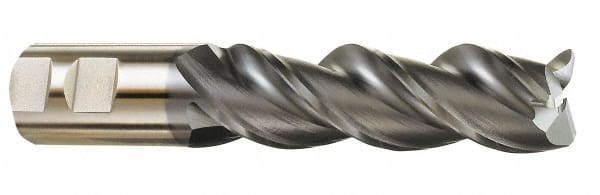

Corner Radius End Mill: 1″ Dia, 2″ LOC, 0.06″ Radius, 3 Flutes, Powdered Metal 4-1/2″ OAL, 1″ Shank Dia, 42 ° Helix, TiCN Coated, Corner Radius End, Centercutting, Series PM-539R
Item #: 00394791
Brand: Cleveland
Model #: C40357
Product Specifications
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Length of Cut (Inch) | 2 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Number Of Flutes | 3 |
| End Mill Material | Powdered Metal |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Regular |
| Flute Type | Spiral |
| Helix Angle | 42 |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Variable Index | No |
| Variable Helix | No |
| Material Removal Type | Finishing |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 4-1/2 |
| Maximum Helix Angle | 42.00 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | PM-539R |
| Single Or Double End | Single |
| Coating/Finish | TiCN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.0000 |
