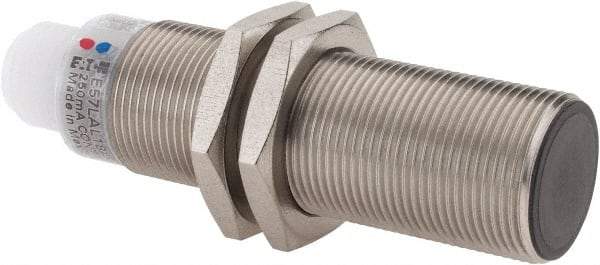

Eaton Cutler-Hammer - NPN, 5mm Detection, Cylinder Shielded, Inductive Proximity Sensor - 2 Wires, IP67, 20 to 250 VAC, M18x1 Thread, 2.54 Inch Long
Item #: 00330712
Brand: Eaton Cutler-Hammer
Model #: E57LAL18A2SA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Sensor Type | Inductive |
| Body Shape | Cylinder Shielded |
| Sensor Operation Output Mode | NO |
| Output Type | NPN |
| Connector Type | 3-pin Micro AC |
| Number of Wires | 2 |
| Detection Distance (mm) | 5.00 |
| Sensor Head Size | M18 |
| Maximum Voltage | 20-250 VAC |
| NEMA Rating | 4; 6; 12; 13; 4X; 6P |
| Ingress Protection Rating | IP67 |
| Maximum Load Capacity (mA) | 250 (70 C); 500 (25 C) |
| Response Frequency (Hz) | 20 |
| Thread Size | M18x1 |
| Housing Material | Stainless Steel |
| Resistance Features | Shock Resistant; Vibration Resistant |
| Overall Length (mm) | 64-1/2 |
| Overall Length (Decimal Inch) | 2.5400 |
| Maximum Operating Temperature (F) | 158 |
| Minimum Operating Temperature (F) | -13 |
| Standards Met | CE Listed; cUL Listed |
