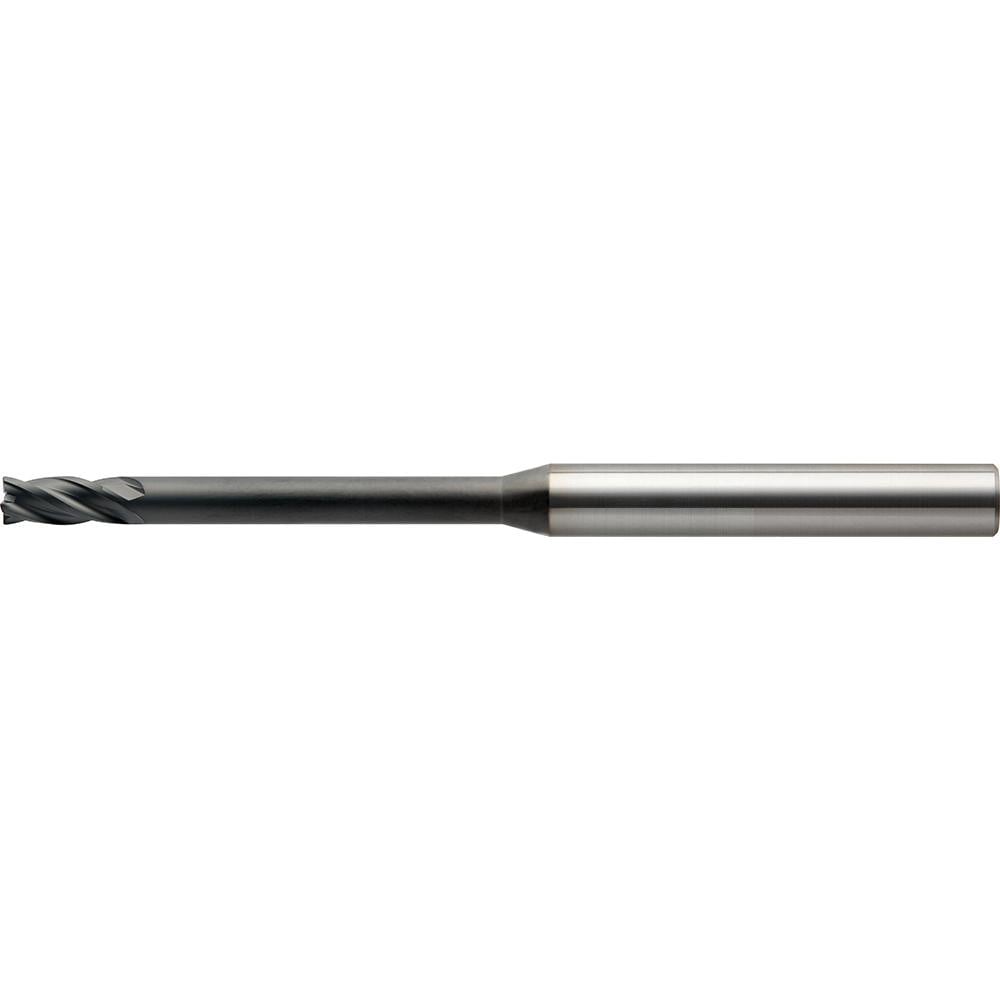

Corner Radius End Mill: 2.00 mm Dia, 4.00 mm LOC, 30 deg Helix, Diamond Coated, Corner Radius End, Centercutting Series DCLRS
Item #: 09758855
Brand: US Union Tool
Model #: 2734202
Product Specifications
| Mill Diameter (mm) | 2.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 4.00 |
| End Mill Material | Solid Carbide |
| Coating/Finish | Diamond |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Corner Radius (mm) | 0.05 |
| Overall Length (mm) | 60 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 2.0000 |
| Length Type | Long |
| Extended Reach | Yes |
| Shank Diameter (mm) | 4.00 |
| Mill Diameter Tolerance | -0.02 |
| Shank Diameter Tolerance | -0.005 |
| UNSPSC Code | 27112803 |
| Material Grade | MG |
| Series | DCLRS |
