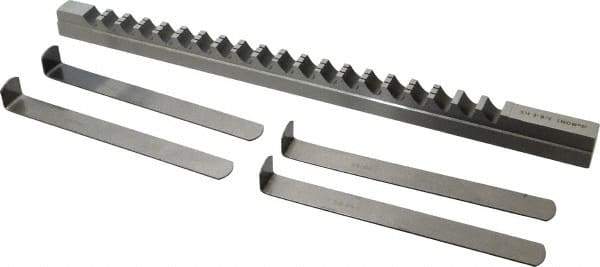

Dumont Minute Man - 5/8" Keyway Width, Style E, Keyway Broach - High Speed Steel, Bright Finish, 3/4" Broach Body Width, 1" to 6" LOC, 15-1/2" OAL, 9,600 Lbs Pressure for Max LOC - Americas Industrial Supply

Dumont Minute Man - 5/8" Keyway Width, Style E, Keyway Broach - High Speed Steel, Bright Finish, 3/4" Broach Body Width, 1" to 6" LOC, 15-1/2" OAL, 9,600 Lbs Pressure for Max LOC


Item #: 00309369
Brand: Dumont Minute Man
Model #: 22216
Exact Tooling IR#: 04

Features and Benefits

Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Product Specifications
Keyway Broach Type Keyway
Keyway Width (Inch) 5/8
Broach Style E
Broach Material High Speed Steel
Broach Coating Bright
Broach Body Width (Inch) 3/4
Minimum Length of Cut (Inch) 1
Maximum Length of Cut (Inch) 6
Overall Length (Inch) 15-1/2
Minimum Keyway Width Tolerance (Decimal Inch) 0.6260
Maximum Keyway Width Tolerance (Decimal Inch) 0.6270
Number of Shims Required 4
Pressure Required for Maximum Length of Cut (Lb.) 9600
$299.08
