Dumont Minute Man - 3/4" x 17-3/4" Overall Length, 13/16" Pilot Hole Diam, Square Broach - 0.751 to 0.752" Tolerance, 1.045 to 1.047" Across Corners, 7/16" Pitch, 5/8 to 1-5/8" LOC, 5,940 Lbs. Pressure for Max LOC - Americas Industrial Supply

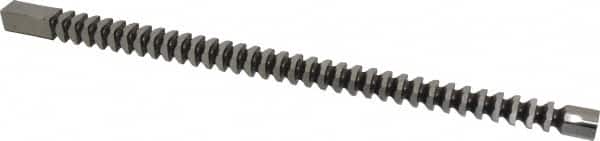

Dumont Minute Man - 3/4" x 17-3/4" Overall Length, 13/16" Pilot Hole Diam, Square Broach - 0.751 to 0.752" Tolerance, 1.045 to 1.047" Across Corners, 7/16" Pitch, 5/8 to 1-5/8" LOC, 5,940 Lbs. Pressure for Max LOC


Item #: 00307488
Brand: Dumont Minute Man
Model #: 66617
Exact Tooling IR#: 04

Features and Benefits

High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Product Specifications
Square Size (Inch) 3/4
Pilot Hole Diameter (Inch) 13/16
Pilot Hole Diameter (Decimal Inch) 0.8125
Minimum Length of Cut (Inch) 5/8
Maximum Length of Cut (Inch) 1-5/8
Minimum Dimension Across Corners (Decimal Inch) 1.0450
Maximum Dimension Across Corners (Decimal Inch) 1.0470
Overall Length (Inch) 17-3/4
Pressure Required for Maximum Length of Cut (Lb.) 5940
Tooth Pitch (Inch) 7/16
Minimum Tolerance (Decimal Inch) 0.7510
Maximum Tolerance (Decimal Inch) 0.7520
Broach Material High Speed Steel
Broach Coating Bright
$654.53
