Dumont Minute Man - 7mm x 7-3/4" Overall Length, 0.2913" Pilot Hole Diam, Square Broach - 0.2756 to 0.2764" Tolerance, 0.385 to 0.387" Across Corners, 7.4mm Drill, 7/32" Pitch, 3/8 to 1" LOC, 1,800 Lbs. Pressure for Max LOC - Americas Industrial Supply

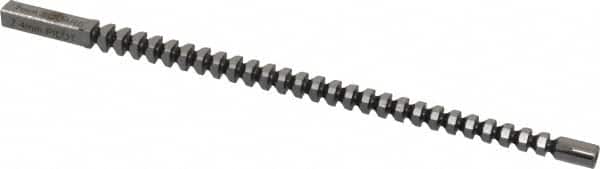

Dumont Minute Man - 7mm x 7-3/4" Overall Length, 0.2913" Pilot Hole Diam, Square Broach - 0.2756 to 0.2764" Tolerance, 0.385 to 0.387" Across Corners, 7.4mm Drill, 7/32" Pitch, 3/8 to 1" LOC, 1,800 Lbs. Pressure for Max LOC


Item #: 00294348
Brand: Dumont Minute Man
Model #: 66633
Exact Tooling IR#: 04

Features and Benefits

Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
Product Specifications
Square Size (mm) 7.00
Pilot Hole Diameter (Decimal Inch) 0.2913
Minimum Length of Cut (Inch) 3/8
Maximum Length of Cut (Inch) 1
Minimum Dimension Across Corners (Decimal Inch) 0.3850
Maximum Dimension Across Corners (Decimal Inch) 0.3870
Overall Length (Inch) 7-3/4
Pressure Required for Maximum Length of Cut (Lb.) 1800
Tooth Pitch (Inch) 7/32
Minimum Tolerance (Decimal Inch) 0.2756
Maximum Tolerance (Decimal Inch) 0.2764
Broach Coating Bright
Drill Size (mm) 7.40
$296.69
