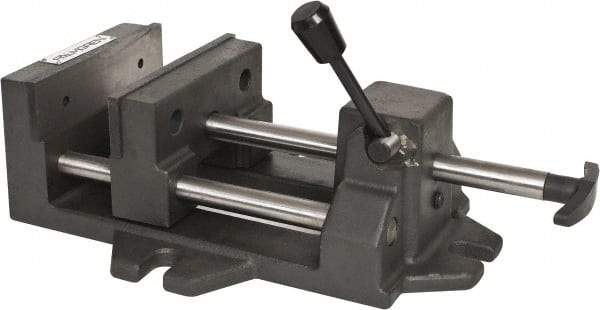

Palmgren - 6" Jaw Opening Capacity x 1-7/8" Throat Depth, Horizontal Drill Press Vise - 6" Wide Jaw, Stationary Base, Standard Speed, 14-1/2" OAL x 4-5/16" Overall Height
Item #: 00267120
Brand: Palmgren
Model #: 9612621
Exact Tooling IR#: 04
Features and Benefits
Drill press vises with a horizontal orientation are ground on the base only, for horizontal workholding.
Stationary or fixed vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
Standard spindle operations feature a continuous nut design for consistent jaw movement.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 6 |
| Jaw Opening Capacity (Inch) | 6 |
| Jaw Opening Capacity (Decimal Inch) | 6.0000 |
| Throat Depth (Inch) | 1-7/8 |
| Throat Depth (Decimal Inch) | 1.8750 |
| Orientation Type | Horizontal |
| Base Motion Type | Stationary |
| Spindle Operation Type | Standard |
| Overall Length (Inch) | 14-1/2 |
| Overall Height (Inch) | 4-5/16 |
| Base Length (Inch) | 14-5/8 |
| Base Width (Inch) | 9-3/16 |
| Model Number | QV60 |
| Jaw Style | Step |
