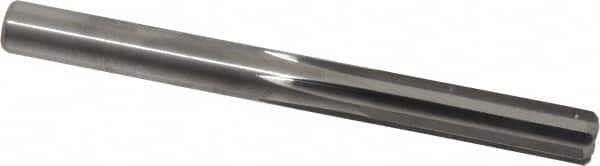

M.A. Ford - 0.3135" Solid Carbide 6 Flute Chucking Reamer - Straight Flute, 0.301" Straight Shank, 1-1/8" Flute Length, 3-1/4" OAL
Item #: 00245969
Brand: M.A. Ford
Model #: 27231350
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 0.3135 |
| Reamer Material | Solid Carbide |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (Inch) | 3-1/4 |
| Flute Length (Inch) | 1-1/8 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 6 |
| Over/Under Size Direction | Over |
| Maximum Shank Diameter (Decimal Inch) | 0.3010 |
| Under Size Over Size Dowel Pin Size | 0.3135 O/S |
| Over/Under Size Reamer | Yes |
| Dowel Pin Reamer | No |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Reamer Diameter Tolerance (Decimal Inch) | +0.0001 to +0.0003 |
