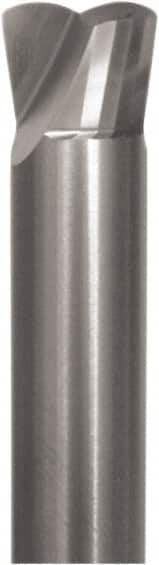

Corner Radius End Mill: 0.1181″ Dia, 0.0079″ LOC, 0.0079″ Radius, 2 Flutes, Solid Carbide Helix, TiAlN Coated, Corner Radius End, Centercutting, Series JHF980
Item #: 00170480
Brand: Seco
Model #: 02511224
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1181 |
| Mill Diameter (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Corner Radius (mm) | 0.20 |
| Length of Cut (mm) | 0.20 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| Extended Reach | Yes |
| End Type | Corner Radius |
| Flute Type | Straight |
| Shank Type | Straight-Cylindrical |
| Centercutting | Yes |
| Shank Diameter (mm) | 6.00 |
| Neck Diameter (mm) | 2.60 |
| Neck Diameter (Decimal Inch) | 0.1020 |
| Overall Length (mm) | 50.00 |
| Corner Radius Tolerance | +0.05000 to -0.05000 mm |
| Mill Diameter Tolerance | -0.020000 to -0.050000 mm |
| Shank Diameter Tolerance | h5 |
| Primary Workpiece Material Code | P; S; H; K; M |
| Cutting Direction | Right Hand |
| Series | JHF980 |
| TIR Maximum (mm) | 0.01 |
| Single Or Double End | Single |
| Coating/Finish | TiAlN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0079 |
