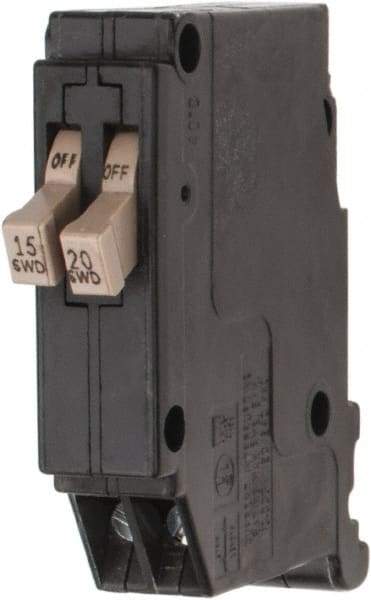

Eaton Cutler-Hammer - 15, 20 Amp, 120 VAC, 1 Pole, Plug In Twin Circuit Breaker - Thermal Magnetic Trip, 14-8 AWG, 18.8mm Deep x 83.6mm High x 75.7mm Wide
Item #: 00105049
Brand: Eaton Cutler-Hammer
Model #: CHT1520
Exact Tooling IR#: 04
Features and Benefits
Twin circuit breakers are two half size breakers that fit into a full sized panel allowing expansion for additional breakers. They are designed for protecting against overload and short-circuiting.
Thermal-magnetic tripping mechanisms are designed with both a bi-metal switch and an electromagnet. They perform as a thermal breaker for low level overloads and perform as a magnetic breaker for instantaneous tripping mechanism at high levels.
| Product Specifications | |
|---|---|
| Circuit Breaker Type | Twin Circuit Breaker |
| Amperage | 15; 20 |
| Number of Poles | 1 |
| Tripping Mechanism | Thermal-Magnetic |
| Terminal Connection Type | Screw |
| Mounting Type | Plug-in |
| Voltage | 120 VAC |
| Wire Size (AWG) | 14-8 |
| Overall Depth (Decimal Inch) | 0.7400 |
| Overall Depth (mm) | 18.80 |
| Overall Height (mm) | 83.60 |
| Overall Height (Decimal Inch) | 3.2900 |
| Overall Width (mm) | 75.70 |
| Overall Width (Decimal Inch) | 2.9800 |
| For Use With | CTL Load Center; Non-CTL CH Loadcenter |
| Standards Met | UL Listed |
| Reset Actuator Type | Handle |
