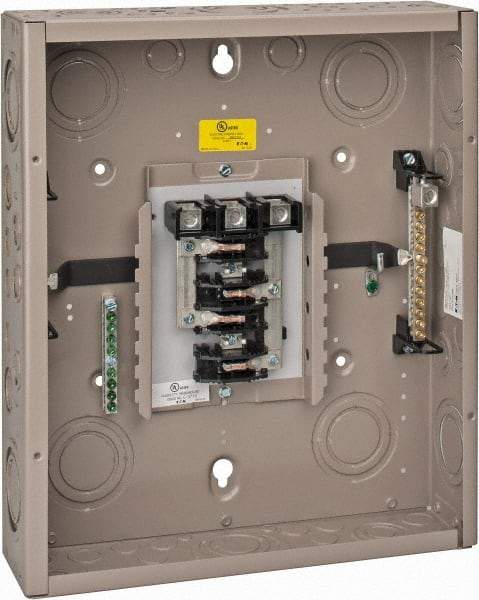

Eaton Cutler-Hammer - 12 Circuits, 208/120 VAC, 125 Amp Main, 6-2/0 AWG, Indoor Main Lug Load Center - 3 Phase, 1 NEMA Rating, 14.31 Inch Wide x 3.88 Inch Deep x 16-3/4 Inch High
Item #: 00104091
Brand: Eaton Cutler-Hammer
Model #: CH12L3125B
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Load Center Type | Main Lug |
| Number of Circuits | 12 |
| Main Amperage | 125 |
| Number of Phases | 3 |
| Voltage | 208/120 VAC |
| NEMA Enclosure Rating | 1 |
| Body Material | Steel |
| Circuit Breaker Installation Type | Plug-in |
| Overall Depth (mm) | 98.40 |
| Overall Depth (Decimal Inch) | 3.8800 |
| Overall Height (Decimal Inch) | 16-3/4 |
| Overall Height (mm) | 425-1/2 |
| Overall Width (mm) | 363-1/2 |
| Overall Width (Decimal Inch) | 14.3100 |
| Wire Size (AWG) | 6-2/0 |
| Recommended Environment | Indoor |
| Standards Met | CSA E3624 Certified; CSA E51287 Certified; CSA File LR87196 Certified; EC Article 373.8; Federal Specification W-C 375 b/Gen; NEMA; UL 489; UL Listed File E11713; UL Listed File E8741 |
