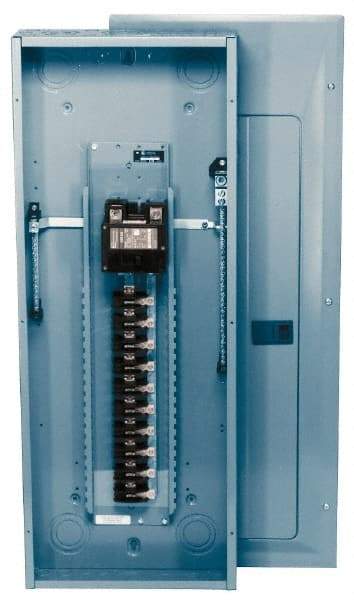

Eaton Cutler-Hammer - 32 Circuits, 120/240 VAC, 150 Amp Main, 6-3/0 AWG, Indoor Main Lug Load Center - 1 Phase, 1 NEMA Rating, 14.31 Inch Wide x 3.88 Inch Deep x 29.13 Inch High
Item #: 00104042
Brand: Eaton Cutler-Hammer
Model #: CH32L150D
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Load Center Type | Main Lug |
| Number of Circuits | 32 |
| Main Amperage | 150 |
| Number of Phases | 1 |
| Voltage | 120/240 VAC |
| NEMA Enclosure Rating | 1 |
| Body Material | Steel |
| Circuit Breaker Installation Type | Plug-in |
| Overall Depth (mm) | 98.40 |
| Overall Depth (Decimal Inch) | 3.8800 |
| Overall Height (Decimal Inch) | 29.1300 |
| Overall Height (mm) | 739.80 |
| Overall Width (mm) | 363-1/2 |
| Overall Width (Decimal Inch) | 14.3100 |
| Wire Size (AWG) | 6-3/0 |
| Recommended Environment | Indoor |
| Standards Met | Article 408.34 of NEC; CSA E3624 Certified; CSA E51287 Certified; CSA File LR87196 Certified; EC Article 373.8; Federal Specification W-C 375 b/Gen; NEMA; UL 489; UL Listed File E11713; UL Listed File E8741 |
