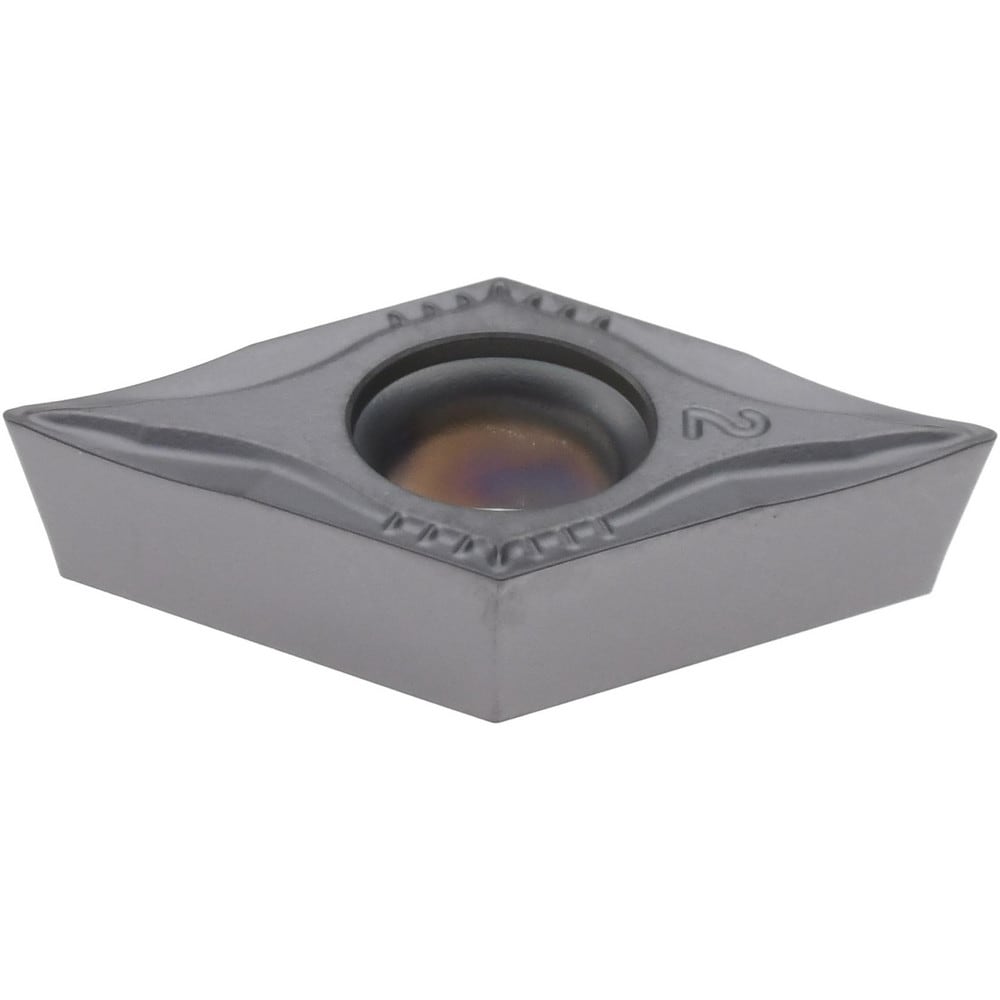

Turning Insert: DCMT11T302WSF+ ACM25P, Carbide
Item #: 75272583
Brand: Accupro
Model #: 75272583
Product Specifications
| ANSI Insert Code | DCMT32.505 |
| ISO Insert Code | DCMT |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55 |
| Manufacturer Grade | ACM25P |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (mm) | 2.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0886 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | DCMT11T302 |
| Standards | ANSI Code: DCMT32.505 |
| Chip Breaker | WSF+ |
| ANSI Size Code | 32.505 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 11 |
| ANSI Insert Code | DCMT32.505 |
| ISO Insert Code | DCMT |
| Relief Angle | 7 |
| Insert Style | DCMT |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 55 |
| Manufacturer Grade | ACM25P |
| Coating/Finish | PVD |
| Insert Hand | Neutral |
| Insert Thickness | 3.97 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | CI |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (mm) | 9.53 |
| Insert Material | Carbide |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Steel (P) - High Wear-Resistance to High Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1772 |
| Maximum Depth of Cut (mm) | 2.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0886 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | DCMT11T302 |
| Standards | ANSI Code: DCMT32.505 |
| Chip Breaker | WSF+ |
| ANSI Size Code | 32.505 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 11 |
| MSC Part # | 75272583 |
| Mfr Part # | 75272583 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
