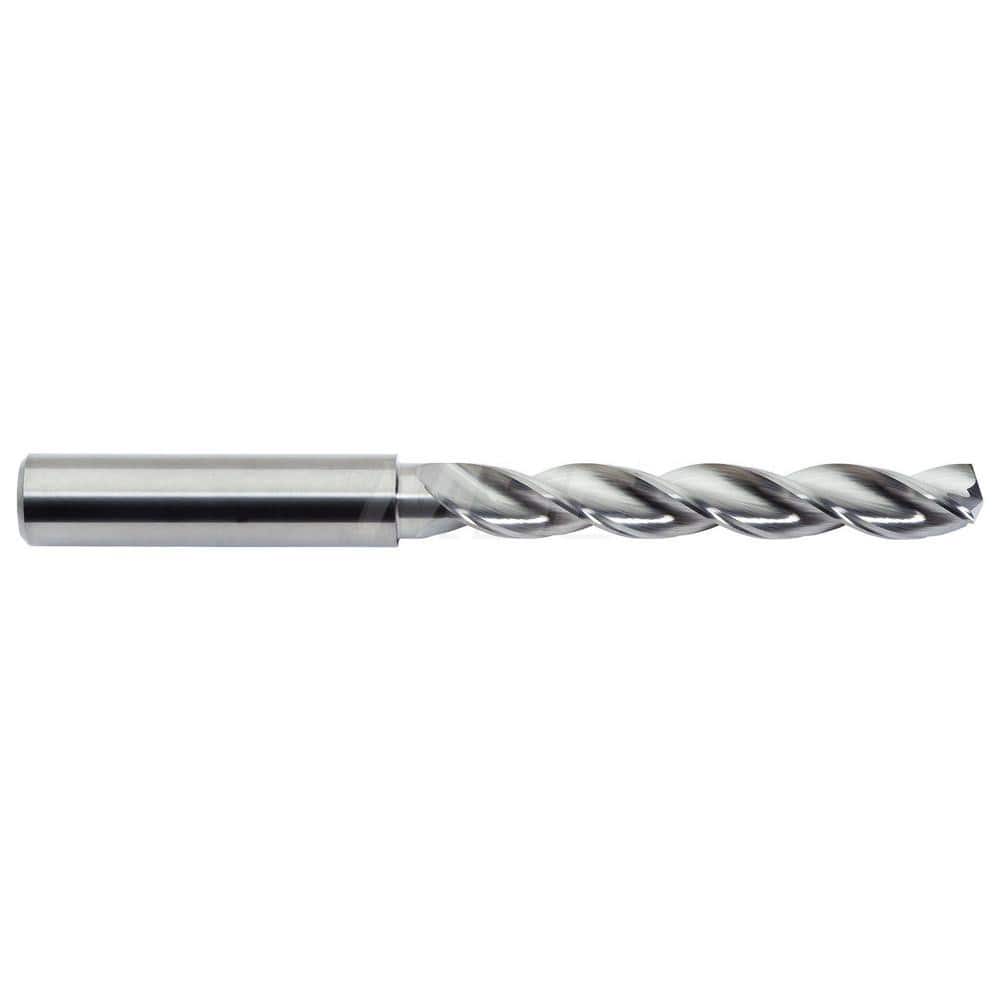

Jobber Length Drill Bit: 0.5469″ Dia, 150 °, Solid Carbide Bright/Uncoated, 5″ OAL, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series 229
Item #: 00046029
Brand: M.A. Ford?
Model #: 22954690
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.5469 |
| Drill Bit Size (Inch) | 35/64 |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Bright |
| Drill Point Angle (Degrees) | 150 |
| Spiral Type | Regular |
| Flute Type | Parabolic |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number of Flutes | 3 |
| Flute Length (Inch) | 3-1/4 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Series | 229 |
| Flute Length x Diamter Ratio | 5xD |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (Inch) | 35/64 |
| Maximum Drilling Depth (Inch) | 2-7/16 |
| Drill Point Length (Decimal Inch) | 0.0660 |
| Drill Bit Diameter Tolerance | 0.0003 to 0.0010 in; 0.007 to 0.025 mm |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | High Performance |
| Standards | DIN 6537 L; ISO 9001:2015 Certified |
| Drill Bit Size Range (Decimal Inch) | 0.5000 - 0.6500 |
