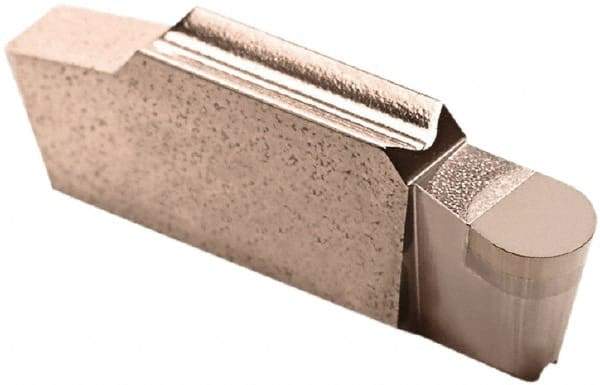

Seco - 1603LCGN Grade CBN170C, 3mm Cutting Width PCBN Grooving Insert - 2.5mm Max Depth of Cut, Neutral Hand, 1.5mm Corner Radius, TiSiN Finish
Item #: 00008706
Brand: Seco
Model #: 03185468
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | LCGN |
| Insert Size | 1603 |
| Material | PCBN |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 2.50 |
| Manufacturer's Grade | CBN170C |
| Coating | TiSiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.39 |
| Lead Angle | 90 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Turning |
| Corner Radius (mm) | 1.5 |
| Overall Length (mm) | 16.60 |
| Series | MDT |
| Included Angle | 90 |
