VDI Style "BV" Toolholder Bushings - (Metric ID)

VDI Style Toolholder Bushing
Type “BV”

VDI Style "BV" Toolholder Bushings Also Available In: Click Here

Metric OD – Inch ID

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

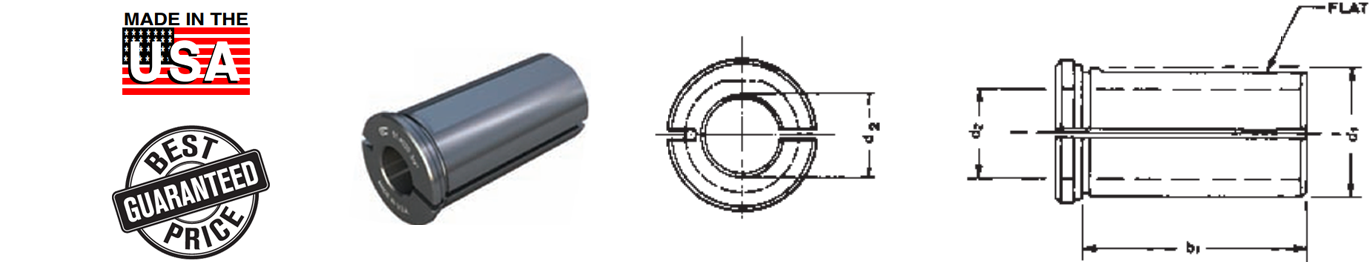

Bushing OD	Length Under Head	Bushing ID	Part Number
d1	b1	d2	Part Number
25mm	36mm	8mm	CNC86 61.2508M
		10mm	CNC86 61.2510M
		12mm	CNC86 61.2512M
		16mm	CNC86 61.2516M
		20mm	CNC86 61.2520M
32mm	46mm	8mm	CNC86 61.3208M
		10mm	CNC86 61.3210M
		12mm	CNC86 61.3212M
		16mm	CNC86 61.3216M
		20mm	CNC86 61.3220M
		25mm	CNC86 61.3225M
40mm	81mm	10mm	CNC86 61.4010M
		12mm	CNC86 61.4012M
		16mm	CNC86 61.4016M
		20mm	CNC86 61.4020M
		25mm	CNC86 61.4025M
		32mm	CNC86 61.4032M
50mm	102mm	20mm	CNC86 61.5020M
		25mm	CNC86 61.5025M
		32mm	CNC86 61.5032M
		40mm	CNC86 61.5040M
60mm	118mm	25mm	CNC86 61.6025M
		32mm	CNC86 61.6032M
		40mm	CNC86 61.6040M
		50mm	CNC86 61.6050M
