V(40”-79”) Power Chuck

Large wedge type non through-hole
power chuck (adapter excluded)

Chucking operations of very large components external or internal clamping.
Suitable for vertical lathe, due to the front protection of slide way.
Master jaw with manual radial setting function.

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

Jaws	Plunger Stroke (mm)	Radial Jaw Stroke +(Manual setting) (mm)	Max. Pull Force (kN)	Max. Gripping Force (kN)	Max. Operating Pressure (kgf / cm²)	Max. Speed (r.p.m.)	Weight (kg)	Moment Of Inertia I (kg．m²)	Matching Cylinder	Matching Hard Jaw	Matching Soft Jaw	Gripping O.D. Range (mm)	SPEC Part Number		Price Each
3	57	23 + (30)	180	320	42.8	630	645	82	MS250C	HJ40-1	HC40-1	Ø285-Ø1005	40"	V-240	Call or Email
4	57	23 + (30)	180	320	42.8	550	700	89	MS250C	HJ40-1	HC40-1	Ø285-Ø1005	40"	VIT-240	Call or Email
3	57	23 + (30)	180	320	42.8	500	890	168	MS250C	HJ40-1	HC40-1	Ø270-Ø1250	50"	V-250	Call or Email
4						400	940	177						VIT-250	Call or Email
6						360	971	183						VE-250	Call or Email
3	60	24 + (40)	200	360	46.9	400	1800	548	MS250C	HJ40-1	HC40-1	Ø390-Ø1600	63"	V-263	Call or Email
4						300	1700	518						VIT-263	Call or Email
6						280	1800	548						VE-263	Call or Email
6	60	24 + (40)	200	360	46.9	230	2850	1350	MS250C	HJ40-1	HC40-1	Ø440-Ø2000	79"	VE-279	Call or Email

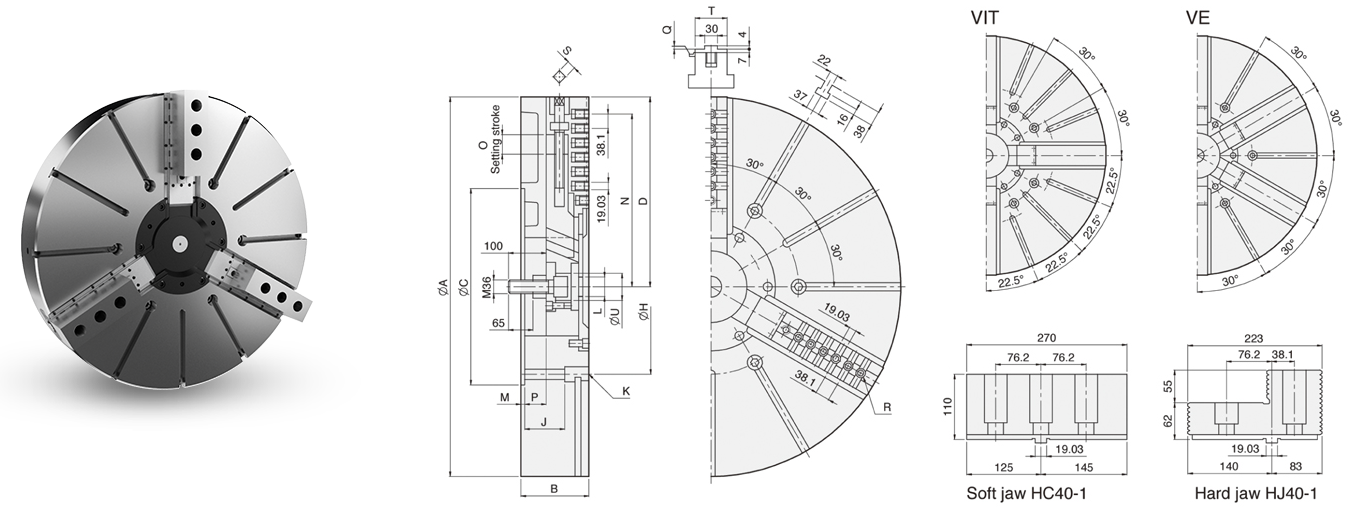

A	B	C	D max.	H	J	K	L	M	N max.	O	P max.	P min.	Q	R	S	T	U	DIM Part Number		Price Each
1005	180	520	502	463.6	108	M24	M52x1.5	8	457	30	59	2	4	7-M24	19	85	72	40"	V-240	Call or Email
1005	180	520	502	463.6	108	M24	M52x1.5	8	457	30	59	2	4	7-M24	19	85	72	40"	VIT-240	Call or Email
1250	180	520	623	463.6	108	M24	M52x1.5	8	563	30	59	2	4	10-M24	19	85	72	50"	V-250	Call or Email
																			VIT-250	Call or Email
																			VE-250	Call or Email
1600	220	720	796	647.6	144	M30	M52x1.5	8	738	40	82	22	6	13-M24	22	110	72	63"	V-263	Call or Email
																			VIT-263	Call or Email
																			VE-263	Call or Email
2000	238	720	996	647.6	159	M30	M52x1.5	8	914	40	100	40	6	17-M24	22	110	72	79"	VE-279	Call or Email
