Type LB Bushing - (Inch OD - Inch ID)

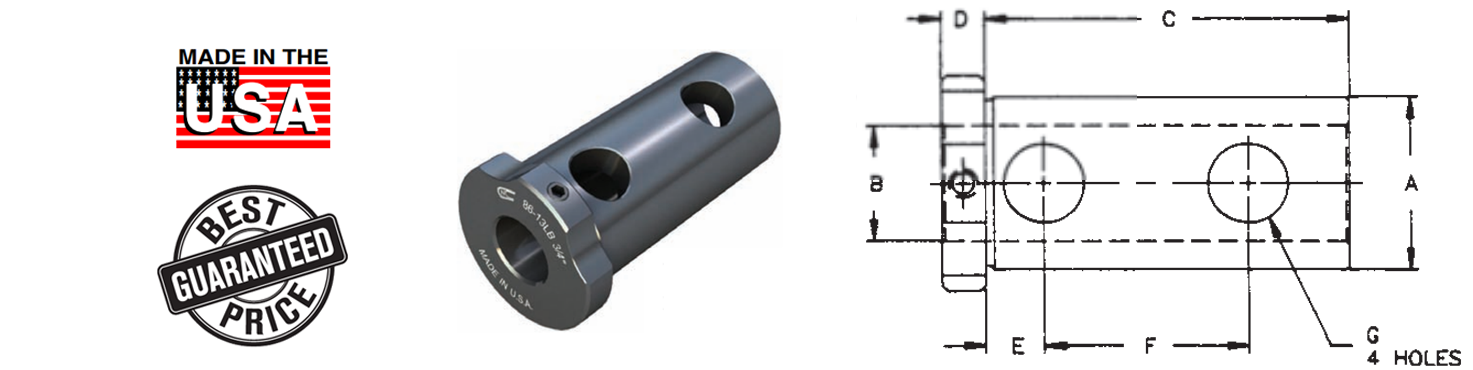

Toolholder Bushing Type “LB”
This Type LB Toolholder Bushing with long solid body, has four clearance holes so that you can clamp directly on the tool with Set Screws for positive alignment of the cutting edge of the tool. Manufactured to include clearance notches for coolant. They are hardened and precision ground concentric. For use on all Okuma CNC Machines.

Type LB Bushings Also Available In: Click Here

  • Inch OD – Metric ID
  • Metric OD – Inch ID
  • Metric OD – Metric ID
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Bushing
OD
Length
Under Head
Head
Thickness
Length
Dimensions
Hole
Size
Bushing
ID
Part Number
A C D E F G B
1-1/4" 3-1/8" 3/8" 1/2" 1-3/4" 5/8" 3/8" CNC 86-12LB 3/8"
1/2" CNC 86-12LB 1/2"
5/8" CNC 86-12LB 5/8"
3/4" CNC 86-12LB 3/4"
7/8" CNC 86-12LB 7/8"
1" CNC 86-12LB 1"
1-1/2" 3-1/8" 3/8" 1/2" 1-3/4" 5/8" 3/8" CNC 86-13LB 3/8"
1/2" CNC 86-13LB 1/2"
5/8" CNC 86-13LB 5/8"
3/4" CNC 86-13LB 3/4"
7/8" CNC 86-13LB 7/8"
1" CNC 86-13LB 1"
1-1/4" CNC 86-13LB 1-1/4"
2" 4-1/2" 1/2" 1/2" 2-3/4" 11/16" 1/2" CNC 86-15LB 1/2"
5/8" CNC 86-15LB 5/8"
3/4" CNC 86-15LB 3/4"
7/8" CNC 86-15LB 7/8"
1" CNC 86-15LB 1"
1-1/4" CNC 86-15LB 1-1/4"
1-1/2" CNC 86-15LB 1-1/2"
1-3/4" CNC 86-15LB 1-3/4"
