Type B Bushing - (Inch OD - Inch ID)

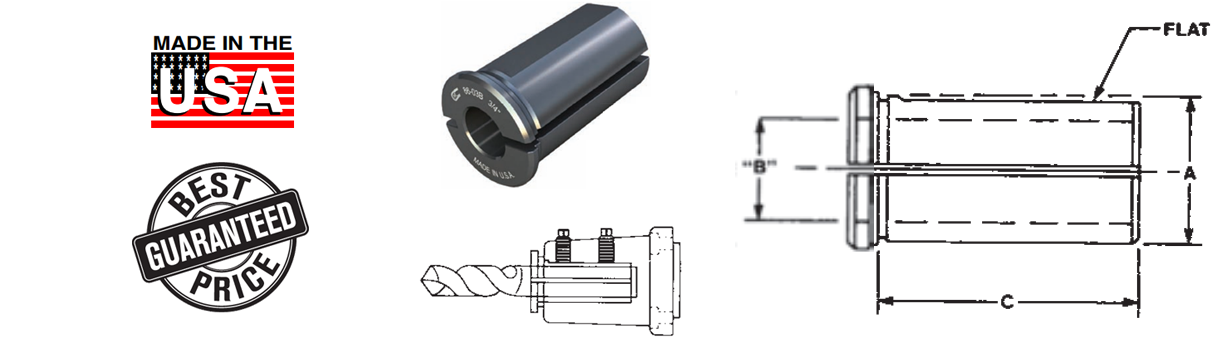

Toolholder Bushing Type “B”
These split Type B Bushings are manufactured with flexible manufacturing systems, for all Types and sizes of CNC Lathes and Chuckers; are Heat Treated and precision ground concentric. It is used to adapt Drills, Boring Bars, and other Shank Tools.

Type B Bushings Also Available In: Click Here

  • Inch OD – Metric ID
  • Metric OD – Inch ID
  • Metric OD – Metric ID
Special Bore Sizes Available. Call for Quote
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Bushing
OD
Length
Under Head
Bushing
ID
Part Number
A C B
3/4" 1-1/2" 1/4" CNC 86-01B 1/4"
5/16" CNC 86-01B 5/16"
3/8" CNC 86-01B 3/8"
1/2" CNC 86-01B 1/2"
1" 1-3/4" 3/8" CNC 86-02B 3/8"
1/2" CNC 86-02B 1/2"
5/8" CNC 86-02B 5/8"
3/4" CNC 86-02B 3/4"
1-1/4" 2-1/8" 3/8" CNC 86-12B 3/8"
1/2" CNC 86-12B 1/2"
5/8" CNC 86-12B 5/8"
3/4" CNC 86-12B 3/4"
7/8" CNC 86-12B 7/8"
1" CNC 86-12B 1"
1-1/2" 2-1/2" 3/8" CNC 86-03B 3/8"
1/2" CNC 86-03B 1/2"
5/8" CNC 86-03B 5/8"
3/4" CNC 86-03B 3/4"
7/8" CNC 86-03B 7/8"
1" CNC 86-03B 1"
1-1/4" CNC 86-03B 1-1/4"
1-3/4" 3" 1/2" CNC 86-04B 1/2"
5/8" CNC 86-04B 5/8"
3/4" CNC 86-04B 3/4"
7/8" CNC 86-04B 7/8"
1" CNC 86-04B 1"
1-1/4" CNC 86-04B 1-1/4"
1-1/2" CNC 86-04B 1-1/2"
2" 3-1/2" 1/2" CNC 86-05B 1/2"
5/8" CNC 86-05B 5/8"
3/4" CNC 86-05B 3/4"
7/8" CNC 86-05B 7/8"
1" CNC 86-05B 1"
1-1/4" CNC 86-05B 1-1/4"
1-1/2" CNC 86-05B 1-1/2"
1-3/4" CNC 86-05B 1-3/4"
2-1/2" 4" 1/2" CNC 86-06B 1/2"
5/8" CNC 86-06B 5/8"
3/4" CNC 86-06B 3/4"
7/8" CNC 86-06B 7/8"
1" CNC 86-06B 1"
1-1/4" CNC 86-06B 1-1/4"
1-1/2" CNC 86-06B 1-1/2"
1-3/4" CNC 86-06B 1-3/4"
2" CNC 86-06B 2"
2-1/4" CNC 86-06B 2-1/4"
3" 4-1/2" 1" CNC 86-07B 1"
1-1/4" CNC 86-07B 1-1/4"
1-1/2" CNC 86-07B 1-1/2"
1-3/4" CNC 86-07B 1-3/4"
2" CNC 86-07B 2"
2-1/4" CNC 86-07B 2-1/4"
2-1/2" CNC 86-07B 2-1/2"
3-1/2" 5-1/4" 1" CNC 86-08B 1"
1-1/4" CNC 86-08B 1-1/4"
1-1/2" CNC 86-08B 1-1/2"
1-3/4" CNC 86-08B 1-3/4"
2" CNC 86-08B 2"
2-1/4" CNC 86-08B 2-1/4"
2-1/2" CNC 86-08B 2-1/2"
3" CNC 86-08B 3"
