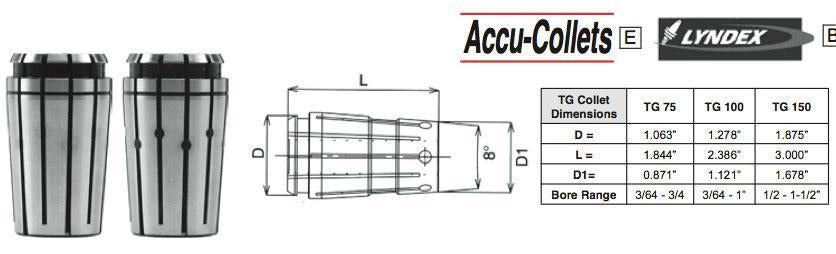

TG-150 Collets

Accu-Collets & Lyndex TG COLLETS
Standard & Coolant Collets
FEATURES:

• TG Collets collapse approx. 1/64”
• Machined to exacting standards
• Ideal choice for high speed and high precision milling and drilling operations
• TG Coolant Collets are designed for use with tooling requiring thru spindle coolant
• Tolerance: 0.0003” at collet nose

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

		TG 150 Collets		TG150 Coolant
BORE SIZE		AccuCollets	Lyndex	AccuCollets
Inch	Dec.
1/2	0.500	150-032-AC	150-032-LY	150-032S-AC
33/64	0.516	150-033-AC	150-033-LY	150-033S-AC
17/32	0.531	150-034-AC	150-034-LY	150-034S-AC
35/64	0.547	150-035-AC	150-035-LY	150-035S-AC
9/16	0.563	150-036-AC	150-036-LY	150-036S-AC
37/64	0.578	150-037-AC	150-037-LY	150-037S-AC
19/32	0.594	150-038-AC	150-038-LY	150-038S-AC
39/64	0.609	150-039-AC	150-039-LY	150-039S-AC
5/8	0.625	150-040-AC	150-040-LY	150-040S-AC
41/64	0.641	150-041-AC	150-041-LY	150-041S-AC
21/32	0.656	150-042-AC	150-042-LY	150-042S-AC
43/64	0.672	150-043-AC	150-043-LY	150-043S-AC
11/16	0.688	150-044-AC	150-044-LY	150-044S-AC
45/64	0.703	150-045-AC	150-045-LY	150-045S-AC
23/32	0.719	150-046-AC	150-046-LY	150-046S-AC
47/64	0.734	150-047-AC	150-047-LY	150-047S-AC

---

		TG 150 Collets		TG150 Coolant
BORE SIZE		AccuCollets	Lyndex	AccuCollets
Inch	Dec.
3/4	0.750	150-048-AC	150-048-LY	150-048S-AC
49/64	0.766	150-049-AC	150-049-LY	150-049S-AC
25/32	0.781	150-050-AC	150-050-LY	150-050S-AC
51/64	0.797	150-051-AC	150-051-LY	150-051S-AC
13/16	0.813	150-052-AC	150-052-LY	150-052S-AC
53/64	0.828	150-053-AC	150-053-LY	150-053S-AC
27/32	0.844	150-054-AC	150-054-LY	150-054S-AC
55/64	0.859	150-055-AC	150-055-LY	150-055S-AC
7/8	0.875	150-056-AC	150-056-LY	150-056S-AC
57/64	0.891	150-057-AC	150-057-LY	150-057S-AC
29/32	0.906	150-058-AC	150-058-LY	150-058S-AC
59/64	0.922	150-059-AC	150-059-LY	150-059S-AC
15/16	0.938	150-060-AC	150-060-LY	150-060S-AC
61/64	0.953	150-061-AC	150-061-LY	150-061S-AC
31/32	0.969	150-062-AC	150-062-LY	150-062S-AC
63/64	0.984	150-063-AC	150-063-LY	150-063S-AC
1"	1.000	150-064-AC	150-064-LY	150-064S-AC
1-1/64	1.016	150-065-AC	150-065-LY	150-065S-AC
1-1/32	1.031	150-066-AC	150-066-LY	150-066S-AC
1-3/64	1.047	150-067-AC	150-067-LY	150-067S-AC
1-1/16	1.063	150-068-AC	150-068-LY	150-068S-AC
1-5/64	1.078	150-069-AC	150-069-LY	150-069S-AC
1-3/32	1.094	150-070-AC	150-070-LY	150-070S-AC
1-7/64	1.109	150-071-AC	150-071-LY	150-071S-AC
1-1/8	1.125	150-072-AC	150-072-LY	150-072S-AC
1-9/64	1.141	150-073-AC	150-073-LY	150-073S-AC
1-5/32	1.156	150-074-AC	150-074-LY	150-074S-AC
1-11/64	1.172	150-075-AC	150-075-LY	150-075S-AC
1-3/16	1.188	150-076-AC	150-076-LY	150-076S-AC
1-13/64	1.203	150-077-AC	150-077-LY	150-077S-AC
1-7/32	1.219	150-078-AC	150-078-LY	150-078S-AC
1-15/64	1.234	150-079-AC	150-079-LY	150-079S-AC
1-1/4	1.250	150-080-AC	150-080-LY	150-080S-AC
1-17/64	1.266	150-081-AC	150-081-LY	150-081S-AC
1-9/32	1.281	150-082-AC	150-082-LY	150-082S-AC
1-19/64	1.297	150-083-AC	150-083-LY	150-083S-AC
1-5/16	1.313	150-084-AC	150-084-LY	150-084S-AC
1-21/64	1.328	150-085-AC	150-085-LY	150-085S-AC
1-11/32	1.344	150-086-AC	150-086-LY	150-086S-AC
1-23/64	1.359	150-087-AC	150-087-LY	150-087S-AC
1-3/8	1.375	150-088-AC	150-088-LY	150-088S-AC
1-25/64	1.391	150-089-AC	150-089-LY	150-089S-AC
1-13/32	1.406	150-090-AC	150-090-LY	150-090S-AC
1-27/64	1.422	150-091-AC	150-091-LY	150-091S-AC
1-7/16	1.438	150-092-AC	150-092-LY	150-092S-AC
1-29/64	1.453	150-093-AC	150-093-LY	150-093S-AC
1-15/32	1.469	150-094-AC	150-094-LY	150-094S-AC
1-31/64	1.484	150-095-AC	150-095-LY	150-095S-AC
1-1/2	1.500	150-096-AC	150-096-LY	150-096S-AC
