SIK Series Chuck

4-jaw strong scroll chuck plain back,
2-piece jaws (front and back mounted)
  • Hard jaws are adopted for square or octagonal thin tube workpieces machining.
  • Soft jaws could grip rectangular workpiece after being unisotropic machined.
  • The specification is the same as SK type.
  • The body is made of MEEHANITE. It is suitably used for high speed revolution and 3 times more durable than regular material.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

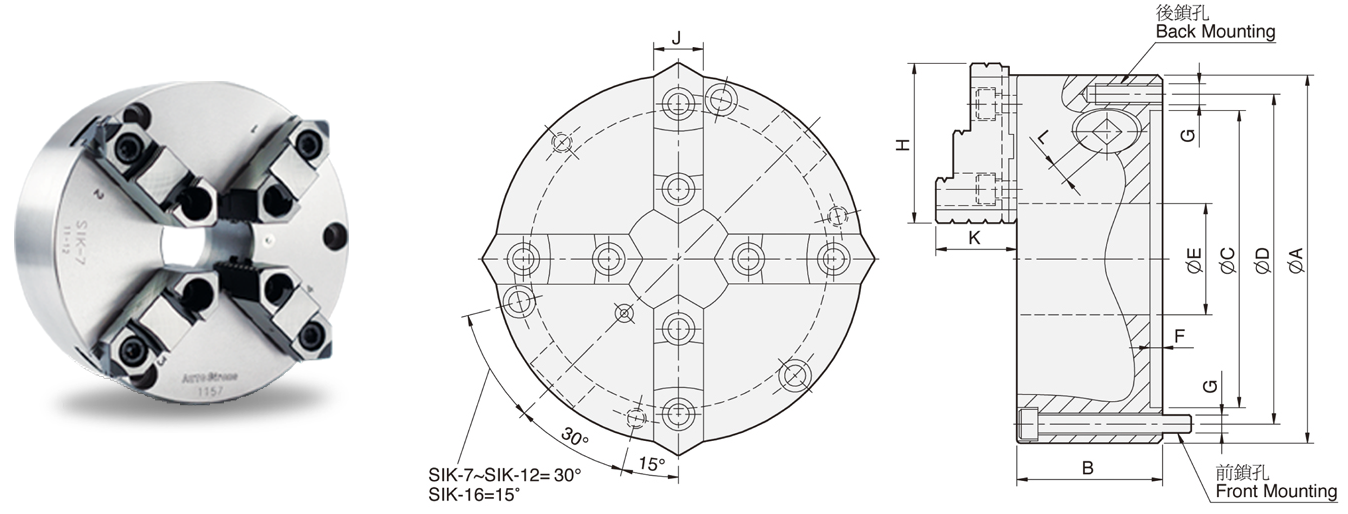

A B C D E F G
Back / Front
H J K L Allowable Handle Torque
(kgf.m)
Gripping Force
(kgf)
Max. Speed
(r.p.m.)
Weight
(kg)
Moment Of
Inertia
I
(kg .m²)
Gripping Range
O.D. Range / I.D. Range
Part Number Price Each
192 76.5 155 172 58 5.5 3-M10 / 3-M10x80 82 28 42 11 11.0 2500 2000 14.1 0.06 Ø8-Ø180 / Ø62-Ø170 SIK-7 Call or Email
232 84 190 210 70 6 3-M12 / 3-M12x90 96 32 51.2 12 15.0 3000 2000 22.2 0.16 Ø11-Ø220 / Ø70-Ø210 SIK-9 Call or Email
310 96 260 285 105 7 3-M12 / 3-M12x110 114.5 40 56.8 14 21.0 4200 1800 45 0.58 Ø15-Ø300 / Ø90-Ø290 SIK-12 Call or Email
405 122 345 375 160 8.7 — / 6-M14x130 148.6 50 76.1 15 25.0 4500 1500 108 1.72 Ø30-Ø380 / Ø110-Ø360 SIK-16 Call or Email
