Mazak Tool Blocks

Mazak Tool Blocks

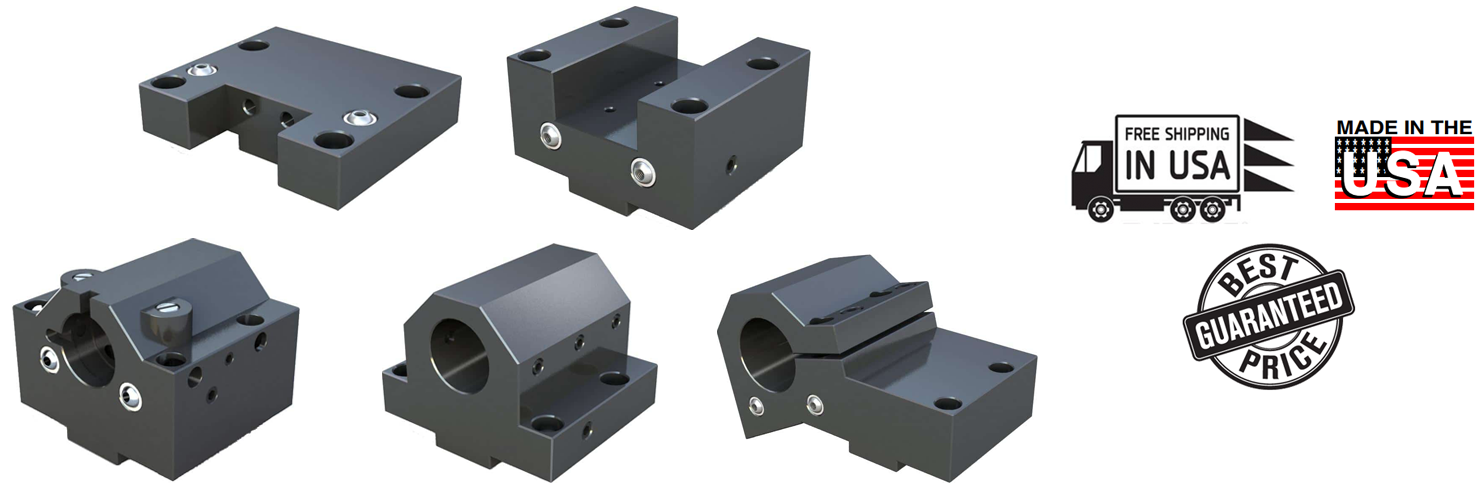

Tool Block Features
  • Bolt On Tool Blocks (Lathe Mounting Blocks & Block Tool Holders) for all types of Machines; New or Old.
  • Block Tool Holders have a specific Bolt Hole Pattern unique to each Machine Make and Model.
  • Select Block Tool Holders from list below. If you do not see your Machine Listed contact us at 888-988-8820. We sell Blocks for Every Machine.
  • Made From Alloy Steel; Precision Machined and Ground. High Pressure Coolant Nozzles.
  • Components Included: Wedges, Coolant Nozzles and Set Screws.
  • Internal Coolant Option available for all ID Tool Blocks; add “INT” to the Part Number.
  • Made in the USA.
New Items
  • VDI ID Block Tool Holders; convert your standard Bolt On Block Lathe to a VDI Turret.
  • ER 32 Collet ID Tool Blocks; offered in Standard Style and Recessed Style (Shown Below).
  • Need to Hold a Very Long Bar; we can make any ID Tool Block “Extended Style” – Increase your Gripping Power!
  • More ID Sizes Available – We make a variety of ID sizes Standard for All Blocks – Call for Listing & Prices!
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Bolt Hole Pattern:
76mm x 45mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Nexus100/150, QT8, QT150, QT250 1" 1" NEX100-8425 NEX100-8411 1" Sq. CALL
1.25" 1.125" NEX100-8432 CALL
1.50" 1.125" NEX100-8435 CALL
Bolt Hole Pattern:
94mm x 60mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Bridgeport QT8, QT15/18, QTN15, SQT250, QT200, Romi M27, NEX150-8D, DualTurn 20 QT, Nexus250 Duplomatic, QT Nexus 200, QT Nexus 350, QT Nexus 300, QT20, QT Nexus 2000 0.75" 50mm NEX350-8420 NEX350-8311 1" Sq. NEX350-8411 1" Sq. CALL
1" 50mm NEX350-8425 CALL
1.25" 50mm NEX350-8432 CALL
1.50" 50mm NEX350-8435 CALL
2" 50mm NEX350-8436 CALL
2.50" 50mm NEX350-8437 CALL
3" 50mm NEX350-8475 CALL
Bolt Hole Pattern:
118mm x 88mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
NEXUS 400, NEXUS 450 1.50" 2" NEX450-8435 NEX450-8311B 1.25" Sq. NEX450-8411B 1.25" Sq. CALL
2" 2" NEX450-8436 CALL
2.5" 2" NEX450-8437 CALL
3" 2" NEX450-8475 CALL
Bolt Hole Pattern:
104mm x 57mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
QT25, QT28N, QT30, QT300 1.5" 2.25" QT30-8435 QT30-8311 1" Sq. QT30-8411 1" Sq. CALL
2" 2.25" QT30-8436 CALL
Bolt Hole Pattern:
94mm x 84mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
QT35N, QTN40, QT350 1.50" 2" QT35-8435 QT35-8311B 1.25" Sq. QT35-8411B 1.25" Sq. CALL
2" 2" QT35-8436 CALL
Bolt Hole Pattern:
84mm x 60mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
QT200, QTN250, Smart250, Smart200 1.25" 2" QT200-8432 QT200-8311 1" Sq. QT200-8411 1" Sq. CALL
1.50" 2" QT200-8435 CALL
6 Hole:BHP 114mm x 203mm
ALT. 4 Hole: BHP 114mm x 101mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
Slant50, Slant60 2.5" 80mm Slant50-8437-4H Slant50-8311 1.25" Sq. B-4H Slant50-8411 1.25" Sq. B-4H CALL
3" 80mm Slant50-8475-4H Slant50-8311 1.25" Sq. B-6H Slant50-8411 1.25" Sq. B-6H CALL
2.5" 80mm Slant50-8437-6H CALL
3" 80mm Slant50-8475-6H CALL
