SOFT JAWS POINTED - 1/16" x 90° Serrations

FOR USE ON: SMW Autoblok, Rohm, Pratt Burnerd & Other Chucks
  • 1/16" x 90° serrations
  • Supplies maximum concentricity on finish turning operations
  • Can be bored or turned to fit workpiece
  • Steel jaws can be hardened
  • Available flat ended or pointed for smaller diameter parts
  • Special orders available
  • Available in Aluminum & Steel
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

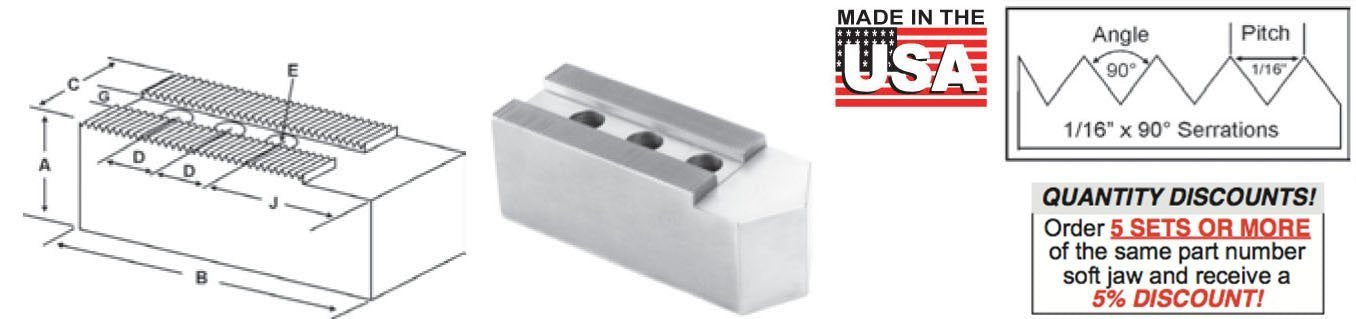

Critical Dimensions ALUMINUM STEEL
Group
No
Chuck
Size
Groove
Width
G
Screw
Size
E
Hole
Space
D
Height
Inch
A
Hole to
Front
J
Width
Inch
C
Length
Inch
B
No.
of
Holes
POINTED END
Part Number
POINTED END
Part Number
I1-43-62 5 0.433 (11mm) 5/16 0.625 (16mm) 1.50 0.875 1.00 2.500 3 PH-5156AP PH-5156P
2.00 0.875 1.00 2.500 3 PH-5256AP PH-5256P
I1-43-71 5 - 6 0.433 (11mm) 5/16 0.718 (18mm) 1.50 1.250 1.25 3.125 3 PH-6150AP PH-6150P
SP 125,
STP 125,
STWP 125
2.00 1.250 1.25 3.125 3 PH-6200AP PH-6200P
2.50 1.250 1.25 3.125 3 PH-6250AP PH-6250P
3.00 1.250 1.25 3.125 3 PH-6300AP PH-6300P
I1-47-59 5 - 6 0.473 5/16 0.591 1.50 0.900 1.00 2.500 3 PH-5150AP PH-5150P
I1-47-63 5 - 6 0.472 8mm 0.630 1.00 0.900 1.00 2.500 3 PH-5100AP PH-5100P
2.00 0.900 1.25 2.500 3 PH-5200AP PH-5200P
I1-55-71 5 - 6 0.551 (14mm) 3/8 0.710 (18mm) 1.50 1.150 1.25 3.000 3 PH-6155AP PH-6155P
3.00 1.150 1.25 3.000 3 PH-6305AP PH-6305P
I1-55-78 5-6 0.551 (14mm) 3/8 0.787 2.00 1.625 1.25 3.000 3 HA-6200AP HA-6200P
3.00 1.625 1.25 3.000 3 HA-6300AP HA-6300P
4.00 1.625 1.25 3.000 3 HA-6400AP HA-6400P
I1-55-87 5 - 10 0.551 (14mm) 3/8 0.875 (22mm) 1.50 2.125 1.50 4.375 3 PH-6151AP PH-6151P
2.00 2.125 1.50 4.375 3 PH-6201AP PH-6201P
2.00 2.325 1.75 4.750 3 PH-10205AP PH-10205P
2.50 2.125 1.50 4.375 3 PH-6251AP PH-6251P
3.00 2.125 1.50 4.375 3 PH-6301AP PH-6301P
3.00 3.575 2.00 6.000 3 PH-10306AP PH-10306P
4.00 2.125 1.50 4.375 3 PH-6401AP PH-6401P
4.00 2.325 1.75 4.750 3 PH-10405AP PH-10405P
4.00 3.575 2.00 6.000 3 PH-10406AP PH-10406P
I1-55-98 5 - 6 0.551 (14mm) 3/8 0.984 (25mm) 1.50 1.650 1.25 3.250 2 SM-6150AP SM-6150P
3.00 1.650 1.25 3.250 2 SM-6300AP SM-6300P
I1-59-81 6 0.590 10mm 0.810 2.00 0.750 1.00 2.000 2 PB-6200AP PB-6200P
I1-66-87 5 - 10 0.669 3/8 0.875 2.00 1.550 1.25 3.250 2 PH-6203AP PH-6203P
SMW
Autoblok

BB-D 210,
BH-D 210
8 0.669 (17mm) 1/2 0.875 (22mm) 2.00 2.125 1.50 4.375 3 PH-8200AP PH-8200P
3.00 2.125 1.50 4.375 3 PH-8300AP PH-8300P
4.00 2.125 1.50 4.375 3 PH-8400AP PH-8400P
I1-66-100 8 0.669 (17mm) 1/2 1.000 (25.5mm) 2.00 1.725 1.50 4.375 3 PH-8201AP* PH-8201P*
PBA
9821-_2110
3.00 1.725 1.50 4.375 3 PH-8301AP* PH-8301P*
4.00 1.725 1.50 4.375 3 PH-8401AP* PH-8401P*
I1-66-112 8 0.669 (17mm) 1/2 1.125 (28.5mm) 2.00 1.750 1.50 3.500 2 SM-8200AP* SM-8200P*
3.00 1.750 1.50 3.500 2 SM-8300AP* SM-8300P*
5.00 1.750 1.50 3.500 2 SM-8500AP* SM-8500P*
I1-71-83 8 0.710 12mm 0.830 2.00 0.840 1.75 3.000 2 PB-6201AP PB-6201P
I1-78-118 10 - 12 0.787 (20mm) 1/2 1.187 (30mm) 2.50 2.250 1.75 5.250 3 PH-10250AP PH-10250P
PBA 15 4.00 2.250 1.75 5.250 3 PH-10400AP PH-10400P
2.50 2.250 2.00 5.500 3 PH-10252AP PH-10252P
4.00 2.250 2.00 5.500 3 PH-10402AP PH-10402P
I1-82-102 10-12 0.826 16mm 1.102 2.00 2.460 1.75 4.750 2 PB-12200AP PB-12200P
I1-82-112 11 - 12 0.827 (21mm) 5/8 1.125 (28.5mm) 3.00 2.440 2.00 4.750 2 PH-11300AP* PH-11300P*
3.00 2.440 2.00 5.750 2 PH-11307AP* PH-11307P*
I1-82-117 10 - 12 0.827 (21mm) 1/2 1.187 (30mm) 2.50 2.250 1.75 5.250 3 PH-12250AP PH-12250P
4.00 2.250 1.75 5.250 3 PH-12400AP PH-12400P
2.50 2.875 2.00 5.250 2 SM-12250AP SM-12250P
4.00 2.875 2.00 5.250 2 SM-12400AP SM-12400P
I1-82-118 8 - 12 0.827 (21mm) 5/8 1.187 (30mm) 2.00 1.963 1.50 3.750 2 PH-8205AP PH-8205P
SMW
Autoblok

BHD-250/
305/315
4.00 1.963 1.50 3.750 2 PH-8405AP PH-8405P
2.50 2.875 2.00 5.250 2 AT-12250AP AT-12250P
4.00 2.875 2.00 5.250 2 AT-12400AP AT-12400P
I1-82-125 10 - 13 0.827 (21mm) 5/8 1.250 (32mm) 2.50 2.130 1.75 4.000 2 PB-10250AP* PB-10250P
2.50 2.630 2.00 4.500 2 PB-12250AP* PB-12250P
I1-82-156 14 - 18 0.827 (21mm) 5/8 1.562 (39.5mm) 2.50 2.875 2.00 6.750 3 PH-15250AP PH-15250P
4.00 2.875 2.00 6.750 3 PH-15400AP PH-15400P
2.50 2.875 2.50 6.750 3 PH-16250AP PH-16250P
4.00 2.875 2.50 6.750 3 PH-16400AP PH-16400P
I1-100-137 14 - 15 1.003 (25.5mm) 20mm 1.375 (35mm) 3.50 2.940 2.25 5.500 2 PH-15351AP* PH-15351P*
3.50 2.940 2.25 6.250 2 PH-153517AP* PH-153517P*
I1-100-175 16 1.000 (25.5mm) 3/4 1.750 (44.5mm) 3.00 3.500 2.00 6.000 2 PB-16300AP* PB-16300P*
I1-118-197 18 1.181 (30mm) 20mm 1.970 (50mm) 3.00 3.310 2.50 8.000 3 PH-18300AP* PH-18300P*
5.00 3.310 2.50 8.000 3 PH-18500AP* PH-18500P*
