Form B4 Left-Hand Short-Inverted

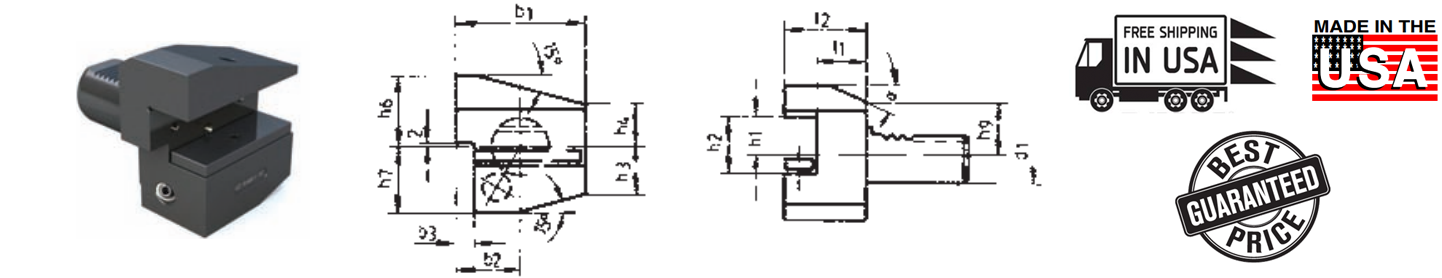

Turning Toolholder – Form B4
Left-Hand Short-Inverted

Inch sizes can be ordered online. For mm size please call to order.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

d1	b1	b2	b3	h1 in	h1 mm	h2	h3	h4	h6	h7	h8	L1	L2	α	Part Number
16	42	23	5	1/2	12	17	15	15	22	20	18	13	25	30	CNC86 24.1612
16	42	23	5	1/2	12	17	15	15	22	20	18	23	35	30	CNC86 24.1612.1
20	55	30	7	5/8	16	22	19	19	30	25	23	16	31	30	CNC86 24.2016
20	55	30	7	5/8	16	22	19	19	30	25	23	26	41	30	CNC86 24.2016.1
25	55	30	7	5/8	16	22	22.5	22.5	30	25	25	16	31	30	CNC86 24.2516
25	55	30	7	5/8	16	22	22.5	22.5	30	25	25	26	41	30	CNC86 24.2516.1
30	70	35	10	3/4	20	29	26	22	38	35	28	22	40	25	CNC86 24.3020
30	70	35	10	3/4	20	29	26	22	38	38	30	42	60	25	CNC86 24.3020.1
30	70	35	10	1	25	34	26	28	48	31	38	22	47	25	CNC86 24.3025
40	85	42.5	12.5	1	25	34	35	30	48	42.5	32.5	22	47	30	CNC86 24.4025
50	100	50	16	1	25	34	42	35	60	50		30	55		CNC86 24.5025
50	100	50	16	1-1/4	32	41	42	35	60	50		30	55		CNC86 24.5032
60	125	62.5	16	1-1/4	32	41	46	42.5	62.5	62.5		30	61		CNC86 24.6032
80	160	80	20	1-1/2	40	53	60	55	80	80		40	78		CNC86 24.8040
