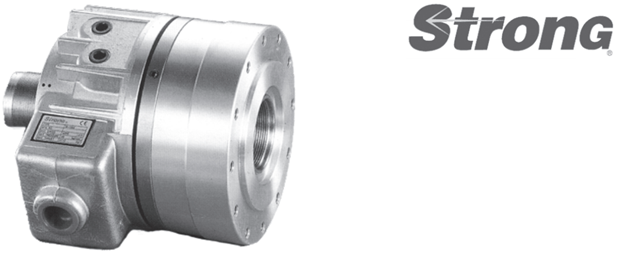

Rotary Hydraulic Cylinders
Super High Speed Through Hole
Strong large thru-hole, high speed rotary hydraulic cylinders are for use with all thru-hole power chucks with speeds up to 7000RPM. All cylinders come with hydraulic pressure lock system and a built-in check valve. To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
| Piston Area | Draw Bar Pull Force | |||||||||||
| MODEL | Piston Dia | Push Size | Pull Side | Piston Stroke | Push Side | Pull Side | Max Op. Pressure | Max RPM | Moment Inertia | Weight | Total Leakage | Part Number |
| M1036 | 105 | 71 | 68.5 | 15 | 24.8(2529) | 24(2447) | 40.8 | 8000 | 0.011 | 8.6 | 3.0 | K-CYM1036-B |
| M1236 | 125 | 100 | 89 | 15 | 38(3875) | 33(3365) | 40.8 | 7000 | 0.019 | 13.0 | 3.0 | K-CYM1236-B |
| M1246 | 125 | 100 | 89 | 15 | 38(3875) | 33(3365) | 40.8 | 7000 | 0.019 | 12.0 | 3.0 | K-CYM1246-B |
| M1546 | 155 | 161 | 150 | 22 | 60(6118) | 56(5710) | 40.8 | 6200 | 0.052 | 18.0 | 3.9 | K-CYM1546-B |
| M1552 | 155 | 161 | 150 | 22 | 60(6118) | 56(5710) | 40.8 | 6200 | 0.052 | 16.8 | 3.9 | K-CYM1552-B |
| M1868 | 180 | 198 | 183 | 25 | 75(7546) | 69(7036) | 40.8 | 4700 | 0.095 | 28.0 | 4.2 | K-CYM1868-B |
| M1875 | 180 | 198 | 183 | 25 | 75(7546) | 69(7036) | 40.8 | 4700 | 0.095 | 26.0 | 4.2 | K-CYM1875-B |
| M2091 | 205 | 252 | 234 | 30 | 94(9585) | 94(9585) | 40.8 | 3800 | 0.15 | 37.0 | 4.5 | K-CYM2091-B |
| M2511 | 250 | 348 | 336 | 23 | 124(12644) | 120(12236) | 40.8 | 2800 | 0.45 | 57.0 | 7.0 | K-CYM2511-B |
