Axial Toolholder
Right-Hand or Left-Hand Inch sizes can be ordered online. For mm size please call to order.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

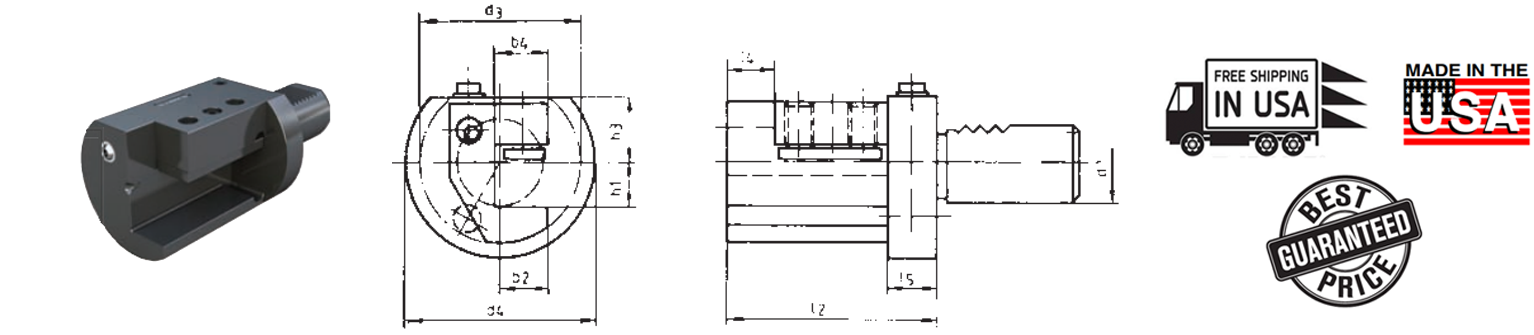

| d1 | h1 in | h1 mm | h3 | b2 | b4 | L2 | L4 | L5 | Part Number |
| 30 | 5/8 | 16 | 28 | 16 | 16 | 70 | 16 | 14 | CNC86 35.3016R |
| 30 | 5/8 | 16 | 28 | 16 | 16 | 70 | 16 | 14 | CNC86 35.3016L |
| 40 | 3/4 | 20 | 32.5 | 20 | 20 | 100 | 20 | 16 | CNC86 35.4020R |
| 40 | 3/4 | 20 | 32.5 | 20 | 20 | 100 | 20 | 16 | CNC86 35.4020L |
| 50 | 1 | 25 | 35 | 25 | 25 | 120 | 25 | 28 | CNC86 35.5025R |
| 50 | 1 | 25 | 35 | 25 | 25 | 120 | 25 | 28 | CNC86 35.5025L |
| 60 | 1-1/4 | 32 | 42.5 | 20 | 32 | 120 | 15 | 28 | CNC86 35.6032R |
| 60 | 1-1/4 | 32 | 42.5 | 20 | 32 | 120 | 15 | 28 | CNC86 35.6032L |
