TG Straight Shank Holders
TG Series Collet Extensions
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
- Crafted from heat treated alloy steel
- Available with round or flatted shank
- Supplied with collet nut

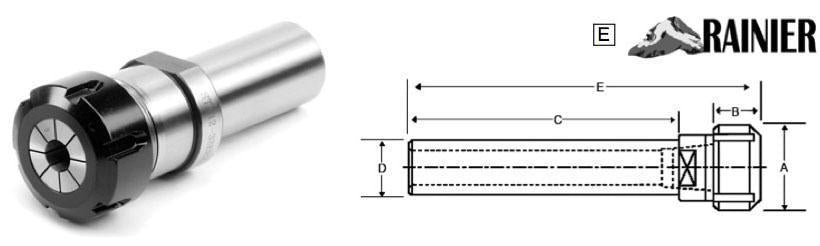

Collet Series | Shank D | C | OAL | Nut Dia | Length of Nut | Type of Nut | Shank Type | Part Number | Collet Nut Part Number | Wrench Part Number | Code |
TG75 | 0.750 | 2.75 | 5.79 | 2.10 | 2.44 | HEX | Flat | S-T75F07-27H-K | CN-TG75-K | WR-TG75-K | E |
TG75 | 1.000 | 2.75 | 5.79 | 2.10 | 2.44 | HEX | Flat | S-T75F10-27H-K | CN-TG75-K | WR-TG75-K | E |
TG75 | 1.250 | 3.25 | 6.30 | 2.10 | 2.44 | HEX | Flat | S-T75F12-32H-K | CN-TG75-K | WR-TG75-K | E |
TG75 | 1.250 | 6.00 | 8.50 | 2.10 | 2.44 | HEX | Round | S-T75R12-60H-K | CN-TG75-K | WR-TG75-K | E |
TG75 | 1.500 | 3.37 | 6.42 | 2.10 | 2.44 | HEX | Flat | S-T75F15-33H-K | CN-TG75-K | WR-TG75-K | E |
TG75 | 1.500 | 6.00 | 7.80 | 2.10 | 2.44 | HEX | Round | S-T75R15-60H-K | CN-TG75-K | WR-TG75-K | E |
TG75 | 1.750 | 3.50 | 6.54 | 2.10 | 2.44 | HEX | Flat | S-T75F17-35H-K | CN-TG75-K | WR-TG75-K | E |
TG75 | 2.000 | 4.00 | 7.05 | 2.10 | 2.44 | HEX | Flat | S-T75F20-40H-K | CN-TG75-K | WR-TG75-K | E |
TG100 | 0.750 | 2.75 | 5.98 | 2.44 | 1.41 | HEX | Flat | S-T10F07-27H-K | CN-TG100-K | WR-TG100-K | E |
TG100 | 1.000 | 2.75 | 5.98 | 2.44 | 1.41 | HEX | Flat | S-T10F10-27H-K | CN-TG100-K | WR-TG100-K | E |
TG100 | 1.250 | 3.25 | 6.50 | 2.44 | 1.41 | HEX | Flat | S-T10F12-32H-K | CN-TG100-K | WR-TG100-K | E |
TG100 | 1.250 | 6.00 | 9.30 | 2.44 | 1.41 | HEX | Round | S-T10R12-60H-K | CN-TG100-K | WR-TG100-K | E |
TG100 | 1.500 | 3.37 | 6.61 | 2.44 | 1.41 | HEX | Flat | S-T10F15-33H-K | CN-TG100-K | WR-TG100-K | E |
TG100 | 1.500 | 6.00 | 9.30 | 2.44 | 1.41 | HEX | Round | S-T10R15-60H-K | CN-TG100-K | WR-TG100-K | E |
TG100 | 1.750 | 3.50 | 6.73 | 2.44 | 1.41 | HEX | Flat | S-T10F17-35H-K | CN-TG100-K | WR-TG100-K | E |
TG100 | 1.750 | 6.00 | 8.20 | 2.44 | 1.41 | HEX | Round | S-T10R17-60H-K | CN-TG100-K | WR-TG100-K | E |
TG100 | 2.000 | 4.00 | 7.24 | 2.44 | 1.41 | HEX | Flat | S-T10F20-40H-K | CN-TG100-K | WR-TG100-K | E |
TG100 | 2.000 | 6.00 | 8.20 | 2.44 | 1.41 | HEX | Round | S-T10R20-60H-K | CN-TG100-K | WR-TG100-K | E |
TG150 | 1.750 | 8.00 | 11.70 | - | - | HEX | Round | S-T15R17-80H-K | CN-TG150-K | WR-TG150-K | E |
TG150 | 2.000 | 8.00 | 11.70 | - | - | HEX | Round | S-T15R20-80H-K | CN-TG150-K | WR-TG150-K | E |
