Straight Shank Tap Holders

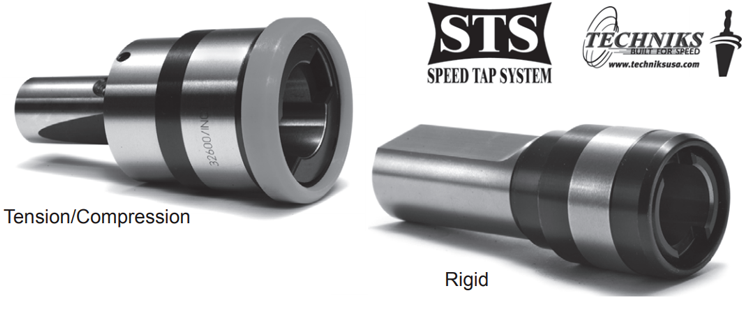

Tension/Compression or Rigid Tapping
Synchronous (Rigid):
Modern machine tools have the capability of synchronizing the spindle rotation and spindle feed. This has made it possible to eliminate the spring compression and tension stroke utilized in traditional tapping heads. The advantage that this brings to threading is the speed by which the cycle can operate.
Tension/Compression:
Tension and compression holders have been the mainstay of machine tool tapping for many years.
These holders are for use with Bilz style quick change tapping collets To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Tension Compression Tap Holders
| Adapter Size | Tap Size | Shank | Proj. Length | Collar Dia | Comp. | Tens. | Brand | Part Number | Code |
| #1 | 0 - 9/16 | 1" | 1.60 | 1.42 | .300 | .300 | STS | ST-S10-10TA1-U | D |
| 1.76 | 1.61 | .350 | .350 | Techniks | ST-S10-10TA1-T | B | |||
| #2 | 5/16 - 7/8 | 1" | 2.50 | 2.09 | .490 | .490 | STS | ST-S10-20TA2-U | D |
| 2.52 | 2.36 | .590 | .590 | Techniks | ST-S10-20TA2-T | B | |||
| #3 | 13/16 - 1 3/8 | 1-1/2" | 3.78 | 3.08 | .790 | .790 | STS | ST-S15-30TA3-U | D |
| 3.85 | 3.38 | .940 | .940 | Techniks | ST-S15-30TA3-T | B |
| Rigid Tap Holders | TECHNIKS [B] | STS [D] | |||
| Adapter Size | Shank | Proj. Length | Collar Dia | Part Number | Part Number |
| #1 | 1" | 1.60 | 1.42 | ST-S10-10FS1-T | ST-S10-10FS1-U |
| #2 | 1" | 2.50 | 2.09 | ST-S10-20FS2-T | ST-S10-20FS2-U |
| #3 | 1-1/2" | 3.78 | 3.08 | ST-S15-30FS3-T | ST-S15-30FS3-U |
