Top Jaws for Collet Pads

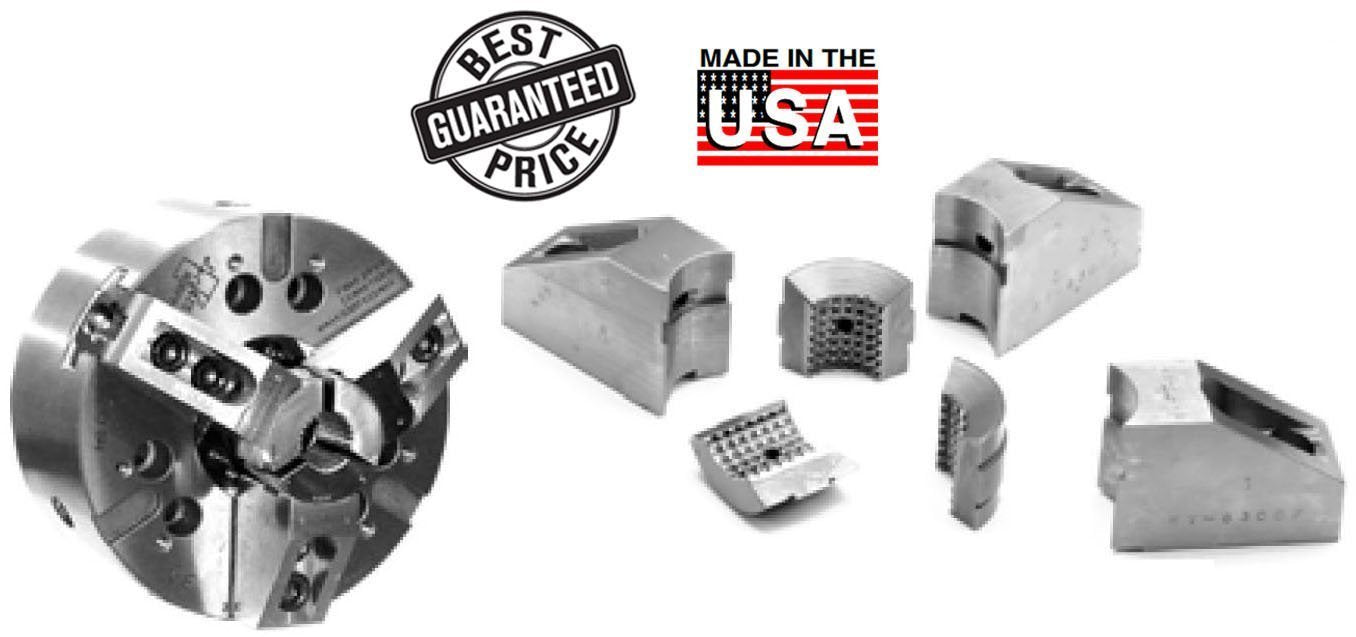

Collet Pad Top Jaws can be configured to fit most 3 jaw chucks that use soft top jaws, regardless of the lock type (Serrated or American Standard). Please call if you do not see your chuck listed below.
Helpful Hint:
A fine boring cut of 0.030", when collet pad top jaws are installed for the first time on your jaw chuck, easily prepares the collet pad top jaws for high concentricity operation for years to come when loaded on the same master jaws. To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
| Critical Dimensions | ||||||||
| Chuck Size | Chuck Make & Model | Groove Width | Screw Size | Hole Space | Warner Swasey Collet Pad # |
Max Round Collet Pad Capacity |
Collet Pad Top Jaws Part Number |
Price Displayed In Cart |
| 6” | KITAGAWA - B-206, B-06; HOWA 6 | 0.472 | M10 | 0.787 | 3 | 1.5” | CPJ-KT0600WS3-Y | - |
| MMK (Matsumoto) - HA_-6, ZA_-6 | 0.433 | M8 | 0.985 | 3 | 1.5” | CPJ-SG0600WS3-Y | - | |
| 8” | KITAGAWA - B-208, B-08; MMK (Matsumoto) - ZA_-8, HA_-8 |
0.551 | M12 | 0.984 | 3 | 1.5” | CPJ-KT0800WS3-Y | - |
| 4 | 2” | CPJ-KT0800WS4-Y | - | |||||
| 5 | 2.5” | CPJ-KT0800WS5-Y | - | |||||
| 8" NIKKO | 0.551 | M10 | 1.181 | 3 | 1.5” | CPJ-SG0800WS3-Y | - | |
| 4 | 2” | CPJ-SG0800WS4-Y | - | |||||
| 10” | KITAGAWA - B210, B10; MMK (Matsumoto) - ZA_-10, HA_-10 |
0.630 | M12 | 1.181 | 3 | 1.5” | CPJ-KT1000WS3-Y | - |
| 4 | 2” | CPJ-KT1000WS4-Y | - | |||||
| 5 | 2.5” | CPJ-KT1000WS5-Y | - | |||||
| 6 | 3” | CPJ-KT1000WS6-Y | - | |||||
| 10" MMK (Matsumoto) ON HITACHI SEIKI CNC | 0.630 | M12 | 1.250 | 3 | 1.5” | CPJ-SE1000WS3-Y | - | |
| 4 | 2” | CPJ-SE1000WS4-Y | - | |||||
| 5 | 2.5” | CPJ-SE1000WS5-Y | - | |||||
| 6 | 3” | CPJ-SE1000WS6-Y | - | |||||
| 12” | KITAGAWA - B-12, HO-12; MMK (Matsumoto) - ZA_-12, HA_-12; HOWA - HO15M12 |
0.709 | M14 | 1.181 | 3 | 1.5” | CPJ-KT1200WS3-Y | - |
| 4 | 2” | CPJ-KT1200WS4-Y | - | |||||
| 5 | 2.5” | CPJ-KT1200WS5-Y | - | |||||
| 6 | 3” | CPJ-KT1200WS6-Y | - | |||||
| KITAGAWA - B-212 | 0.827 | M16 | 1.181 | 3 | 1.5 | CPJ-KT1208WS3-Y | - | |
| 4 | 2 | CPJ-KT1208WS4-Y | - | |||||
| 5 | 2.5 | CPJ-KT1208WS5-Y | - | |||||
| 6 | 3 | CPJ-KT1208WS6-Y | - | |||||
| 15” | KITAGAWA - B-15 | 0.866 | M20 | 1.690 | 3 | 1.5 | CPJ-KT1500WS3-Y | - |
| 4 | 2 | CPJ-KT1500WS4-Y | - | |||||
| 5 | 2.5 | CPJ-KT1500WS5-Y | - | |||||
| 6 | 3 | CPJ-KT1500WS6-Y | - | |||||
| KITAGAWA - B-215 | 1.005 | M20 | 1.690 | 3 | 1.5 | CPJ-KT1508WS3-Y | - | |
| 4 | 2 | CPJ-KT1508WS4-Y | - | |||||
| 5 | 2.5 | CPJ-KT1508WS5-Y | - | |||||
| 6 | 3 | CPJ-KT1508WS6-Y | - | |||||
