Coolant Fed Toolholder Bushing
Coolant Fed Toolholder Bushing
The CNC Type Coolant Fed Bushing is designed for use on applications requiring an External Side Coolant Entry Port. Clamp the Screws from the CNC Machine on the flat and use the Set-screws in the head to clamp directly on the tool allowing for positive alignment of the cutting edge of the tool. To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
The CNC Type Coolant Fed Bushing is designed for use on applications requiring an External Side Coolant Entry Port. Clamp the Screws from the CNC Machine on the flat and use the Set-screws in the head to clamp directly on the tool allowing for positive alignment of the cutting edge of the tool. To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

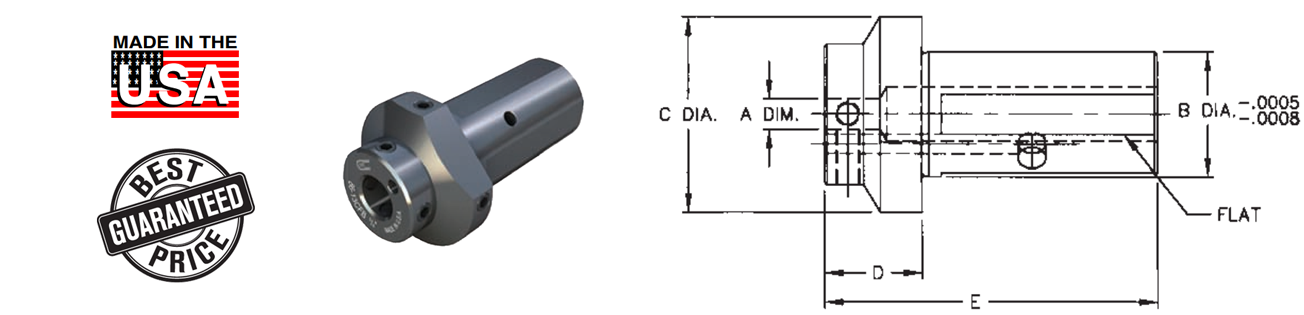

Bushing OD |
Head Dia. |
Head Thickness |
Overall Length |
Bushing ID |
Part Number |
A | C | D | E | B | |
1-1/4" | 50mm | 25mm | 85mm | 5/16" | CNC 86-12CFB 5/16" |
3/8" | CNC 86-12CFB 3/8" | ||||
1/2" | CNC 86-12CFB 1/2" | ||||
5/8" | CNC 86-12CFB 5/8" | ||||
3/4" | CNC 86-12CFB 3/4" | ||||
1" | CNC 86-12CFB 1" | ||||
1-1/2" | 58mm | 30mm | 105mm | 5/16" | CNC 86-13CFB 5/16" |
3/8" | CNC 86-13CFB 3/8" | ||||
1/2" | CNC 86-13CFB 1/2" | ||||
5/8" | CNC 86-13CFB 5/8" | ||||
3/4" | CNC 86-13CFB 3/4" | ||||
1" | CNC 86-13CFB 1" | ||||
1-1/4" | CNC 86-13CFB 1-1/4" |
