Ultra Quick Change Vice Jaws & Mounting Screws
ULTRA QUICK CHANGE MACHINABLE VISE JAWS
FEATURES:
FEATURES:
- Available in Steel or Aluminum
- Customize jaws for your desired job specifications
- Quick change style master jaws are compatible with industry standard vise jaws
- Can be heat treated
- Aluminum Jaws are ideal for delicate work

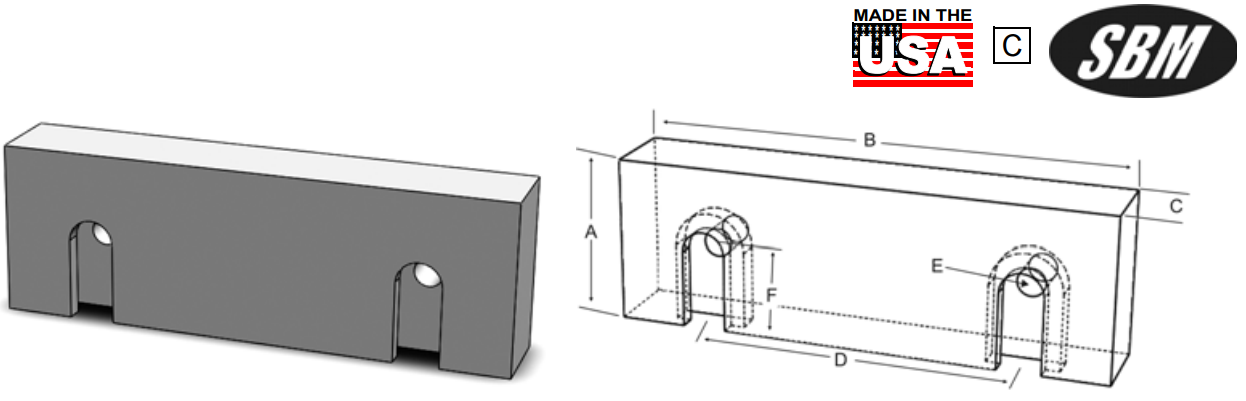

A | B | D | E | F | C | STEEL | ALUMINUM | |
Vise Size | Height Inch | Length Inch | Hole Space | Screw Size | Hole Dist. | Width Inch | Part Number | Part Number |
4” | 1-3/4 | 4 | 2-1/2 | 3/8 | .687 | 3/4 | VJ-4QM41707S-U | VJ-4QM41707A-U |
2 | 4 | 2-1/2 | 3/8 | .687 | 1 | VJ-4QM42010S-U | VJ-4QM42010A-U | |
6” | 2 | 6 | 3-7/8 | 1/2 | .937 | 3/4 | VJ-6QM62007S-U | VJ-6QM62007A-U |
1 | VJ-6QM62010S-U | VJ-6QM62010A-U | ||||||
1-1/4 | VJ-6QM62012S-U | VJ-6QM62012A-U | ||||||
1-1/2 | VJ-6QM62015S-U | VJ-6QM62015A-U | ||||||
2 | VJ-6QM62020S-U | VJ-6QM62020A-U | ||||||
12 | 3-7/8 | 1/2 | .937 | 1 | VJ-6QM22010S-U | VJ-6QM22010A-U | ||
1-1/4 | VJ-6QM22012S-U | VJ-6QM22012A-U | ||||||
3 | 6 | 3-7/8 | 1/2 | .937 | 1 | VJ-6QM63010S-U | VJ-6QM63010A-U | |
2 | VJ-6QM63020S-U | VJ-6QM63020A-U | ||||||
4 | 6 | 3-7/8 | 1/2 | .937 | 1 | VJ-6QM64010S-U | VJ-6QM64010A-U | |
1-1/2 | VJ-6QM64015S-U | VJ-6QM64015A-U | ||||||
2 | VJ-6QM64020S-U | VJ-6QM64020A-U |
STEEL Vise Jaws are made from C1018 Cold Roll Steel and can be hardened. ALUMINUM Vise Jaws are made from 6061-T6 Bar Stock.
Mounting Screws
MOUNTING SCREWS
For Quick Change Vise Jaws
For Quick Change Vise Jaws
- High quality screws are black oxided for durability and long life
- Low head screws for use on all “quick change” vise jaws
- 4 screws per package
Vise Size | Part Number |
4” | SN-4LHS-16 |
6” | SN-6LHS-13 |
8” | SN-8LHS-11 |
