Machinable Aluminum and Steel - SBM

MACHINABLE VISE JAWS ALUMINUM AND STEEL
For Precision Machine Vises
FEATURES:

Fits Kurt™ Anglock™, Te-Co™, Palmgren™ and similar precision machine vises
Perfect for easy and quick set-ups, reducing down time
Customize jaws for drill or mill features
Reusable, saving you time and money!
Price is for set of 2 jaws

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

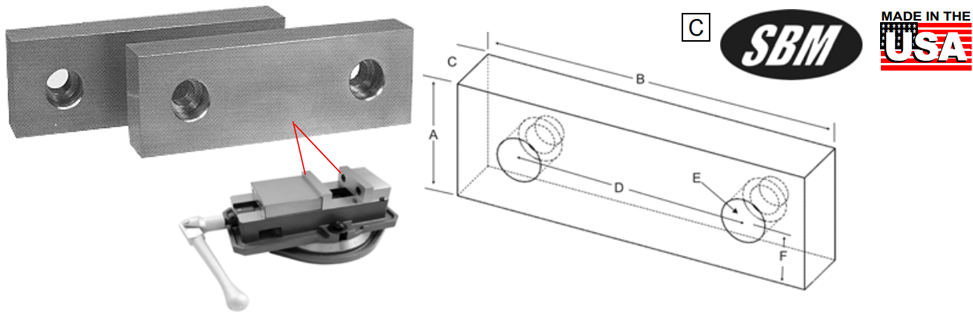

	A	B	D	E	F	C	STEEL	ALUMINUM
Vise Size	Height Inch	Length Inch	Hole Space	Screw Size	Hole Dist.	Width Inch	Part Number	Part Number
4”	1-3/4	4	2-1/2	3/8	.687	3/4	VJ-451	VJ-401
4”	2	4	2-1/2	3/8	.687	1	VJ-452	VJ-402
6”	2	6	3-7/8	1/2	.937	3/4	VJ-651	VJ-601
						1	VJ-652	VJ-602
						1-1/4	VJ-653	VJ-603
						1-1/2	VJ-654	VJ-604
						2	VJ-656	VJ-606
		12	3-7/8	1/2	.937	1	VJ-659	VJ-609
		12	3-7/8	1/2	.937	1-1/4	VJ-660	VJ-610
	3	6	3-7/8	1/2	.937	1	VJ-661	VJ-611
	3	6	3-7/8	1/2	.937	2	VJ-657	VJ-607
	4	6	3-7/8	1/2	.937	1	VJ-662	VJ-612
						1-1/2	VJ-655	VJ-605
						2	VJ-658	VJ-608
8”	2-1/2	8	4-3/4	5/8	1.220	1	VJ-851	VJ-801
8”	2-1/2	8	4-3/4	5/8	1.220	1-1/4	VJ-852	VJ-802

STEEL Vise Jaws are made from C1018 Cold Roll Steel and can be hardened. ALUMINUM Vise Jaws are made from 6061-T6 Bar Stock.
