Drawbar Clamping Force Gage
DRAWBAR CLAMPING FORCE GAGE
CNC Machines using pull-studs for tool retention experience a slow but progressive loss of tool holding pressure from the time the machine is new. This little known fact has a major impact on surface finishes, cutting tool life, and on your productivity. Testing a drawbar requires a force gage which simulates a tool being held in the spindle. The Clamprite Gage uses a common tool holder as the interface between the gage and machine spindle, eliminating the need for a high-priced precision adapter for each different spindle size (only HSK-type spindles require an adapter).
The Clamprite Gage was designed for accurate spindle tension testing right on the machine. The actual pressure exerted by the spindle drawbar mechanism is read directly on the dial, so there is never a need for any calculations or conversions. Drawbar force checking is made easy using the Clamprite drawbar force gage. Drawbar testing takes less than one minute, so production time is barely affected. Its simple and rugged design requires no batteries, electrical cords or delicate electronic components to pre-set, calibrate or burn out.
Accuracy Traceable to NISTSuitable for ISO 9000 Shops! To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

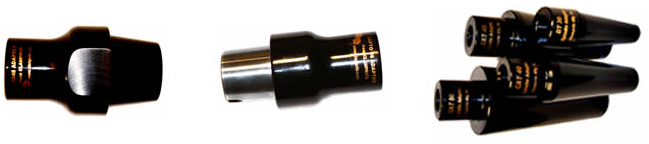

Clamprite Spindle Adapters
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Clamprite HSK Spindle Adapters
HSK spindles must maintain factory specified drawbar force to properly seat the arbors. Test HSK spindles frequently!
Our product sheet only shows the E and A size adapters. Call for information if you have the F or other size adapter and we will tell you which of our part numbers corresponds to your adapter. For example, the HSK F size spindle can be tested with the next size larger adapter in type A configuration. Most of Clamprite's spindle adapters are listed in the type A configuration.
If you have already purchased a gage kit with the universal gage head you can simply add the HSK adapters you need. If you only have HSK spindles you will need to order the appropriate gage head as shown below.
HSK spindle data can be confusing. If you want to end the confusion and learn the whole story, order our HSK Handbook. To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Clamprite Gage Head only for HSK Adapters
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
CNC Machines using pull-studs for tool retention experience a slow but progressive loss of tool holding pressure from the time the machine is new. This little known fact has a major impact on surface finishes, cutting tool life, and on your productivity. Testing a drawbar requires a force gage which simulates a tool being held in the spindle. The Clamprite Gage uses a common tool holder as the interface between the gage and machine spindle, eliminating the need for a high-priced precision adapter for each different spindle size (only HSK-type spindles require an adapter).
The Clamprite Gage was designed for accurate spindle tension testing right on the machine. The actual pressure exerted by the spindle drawbar mechanism is read directly on the dial, so there is never a need for any calculations or conversions. Drawbar force checking is made easy using the Clamprite drawbar force gage. Drawbar testing takes less than one minute, so production time is barely affected. Its simple and rugged design requires no batteries, electrical cords or delicate electronic components to pre-set, calibrate or burn out.
Low drawbar force can result in:
- Reduced cutter life
- Chatter and rough finishes
- Difficulty with repeatability
- Lower feeds and productivity
- Rapid wear of toolholder and spindle tapers
FEATURES:
- Test drawbar force in less than one minute
- Reads directly in lbs of force- no calculating
- Rugged, reliable and works on all machines
- Helps to prevent unscheduled maintenance
- HSK models also available
- Made in USA

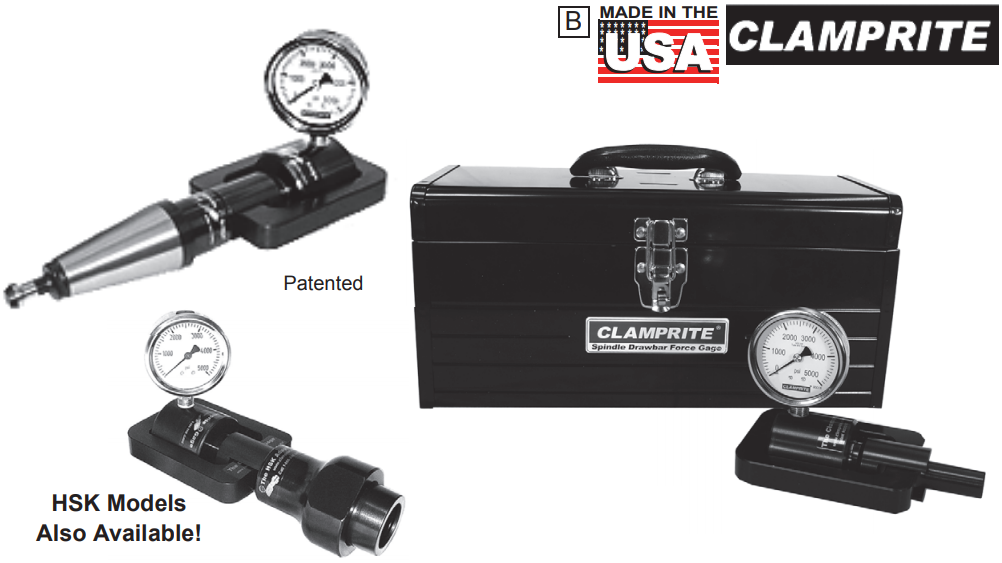

Clamprite Kit Includes:
Prevent Unscheduled Maintenance! Increase Cutter Life! Protect Your Spindles!- Gage head
- Spindle adapter
- Internal transfer screw coupling
- Foam fitted metal tool box
Accuracy Traceable to NISTSuitable for ISO 9000 Shops! To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
PSI lbs | Taper Adapter Included | Part Number | Kit Price |
3,000 Lb. | BT 30 taper | CR-CG3K30B | $894.00 |
BT 40 taper | CR-CG3K40B | $923.00 | |
CAT 40 taper | CR-CG3K40C | $923.00 | |
5,000 Lb. | BT 40 taper | CR-CG5K40B | $923.00 |
CAT 40 taper | CR-CG5K40C | $923.00 | |
BT 50 taper | CR-CG5K50B | $943.00 | |
CAT 50 taper | CR-CG5K50C | $943.00 | |
CAT or BT 40 & 50 | CR-CG5K40/50 | $1174.00 | |
10,000 Lb. | BT 50 taper | CR-CG10K50B* | $970.00 |
CAT 50 taper | CR-CG10K50C* | $970.00 |
Description | Part Number | Price |
ISO 20 Spindle Adapter | CA20I | $164.00 |
BT 30 Spindle Adapter | CA30B | $150.00 |
BT 35 Spindle Adapter | CA35B | $154.00 |
BT 40 Spindle Adapter | CA40B | $164.00 |
CAT 40 Spindle Adapter | CA40C | $164.00 |
BT 45 Spindle Adapter | CA45B | $174.00 |
CAT 45 Spindle Adapter | CA45C | $174.00 |
BT 50 Spindle Adapter | CA50B | $184.00 |
CAT 50 Spindle Adapter | CA50C | $184.00 |
CAT 60 Spindle Adapter | CA60C | $634.00 |
CAPTO 3 Spindle Adapter | CAPTO 03 | $464.00 |
CAPTO 4 Spindle Adapter | CAPTO 04 | $490.00 |
CAPTO 5 Spindle Adapter | CAPTO 05 | $524.00 |
CAPTO 6 Spindle Adapter | CAPTO 06 | $634.00 |
CAPTO 8 Spindle Adapter | CAPTO 08 | $844.00 |
KV 4540 Spindle Adapter | KV 4540 | $684.00 |
KV 5045 Spindle Adapter | KV 5045 | $774.00 |
KM 63 Spindle Adapter | KM 63 | $814.00 |
NC5-63 Spindle Adapter | NC5-63 | $674.00 |
HSK spindles must maintain factory specified drawbar force to properly seat the arbors. Test HSK spindles frequently!
Our product sheet only shows the E and A size adapters. Call for information if you have the F or other size adapter and we will tell you which of our part numbers corresponds to your adapter. For example, the HSK F size spindle can be tested with the next size larger adapter in type A configuration. Most of Clamprite's spindle adapters are listed in the type A configuration.
If you have already purchased a gage kit with the universal gage head you can simply add the HSK adapters you need. If you only have HSK spindles you will need to order the appropriate gage head as shown below.
HSK spindle data can be confusing. If you want to end the confusion and learn the whole story, order our HSK Handbook. To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Description | Part Number | Price |
Size E-25 Adapter | CHSK E25 | $424.00 |
Size E-32 Adapter | CHSK E32 | $454.00 |
Size A-40 Adapter | CHSK A40 | $474.00 |
Size A-50 Adapter | CHSK A50 | $484.00 |
Size A-63 Adapter | CHSK A63 | $544.00 |
Size A-80 Adapter | CHSK A80 | $754.00 |
Size A-100 Adapter | CHSK A100 | $944.00 |
Size A-125 Adapter | CHSK A125 | $1093.00 |
Description | Part Number | Price |
CG5K Gage Head for HSK E-25 to A-63 Adapter & Others | CG5KGageHead | $754.00 |
CG10K Gage Head for HSK A-80 to A-100 Adapter & Others | CG10KGageHead | $793.00 |
CG15K Gage Head for HSK A-125 Adapter & Others | CG15KGageHead | $1093.00 |
