Bar Pullers For CNC Lathes
SBM BAR PULLERS

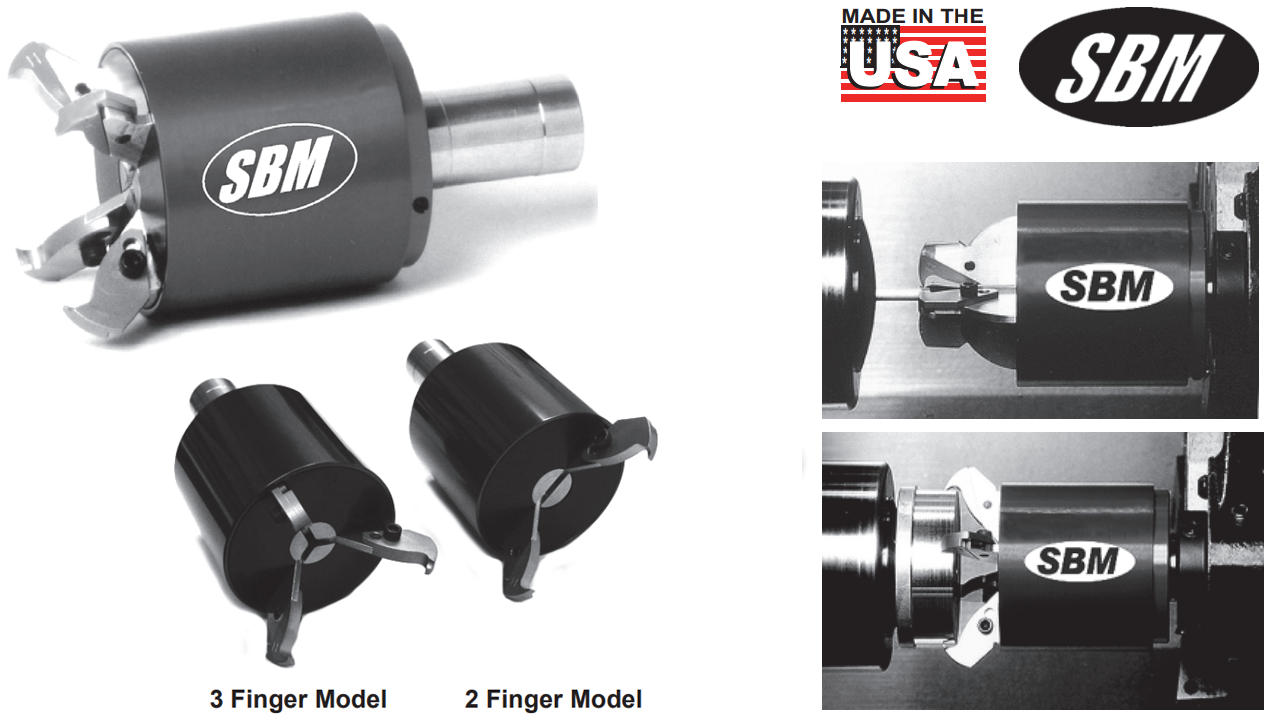

Coolant or Air Actuated 2, 3 & 4 Finger Models
No Down Time-machine continues to run, freeing operator to work other jobs.
Self Adjusting & Self Releasing-After initial setting, no adjustment required for different sizes, and needs only 1/4” of bar length to pull bar!
2, 3 & 4 Finger Design-Holds round and square parts. Can also hold hex and flat parts with 2 fingers.
Pull Threaded or Delicate Material-Simply use the optional soft steel, aluminum, brass or delrin fingers.
Bar Can Be Pulled and Positioned Multiple Times for machining various sections of the part before cutoff.
Great for Sub-Spindle Lathes- use as a “pick and place” device for finished parts.
Quick Installation- comes complete with fingers and bar support collar...be “up and running” within 1 hour!
An Inexpensive And Simple Way To Automate Your CNC LatheAutomatically Pulls And Precisely Positions Bar Stock Through The Chuck, Eliminating Manual Loading And Unloading Of Each And Every Part!
Increase your PROFITS by $50,000-$100,000 per year!
RISK FREE GUARANTEE!
Use the SBM Bar Puller for 30 Days, and if you are not Completely Satisfied, you can return it for your money back...
No Questions Asked! To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

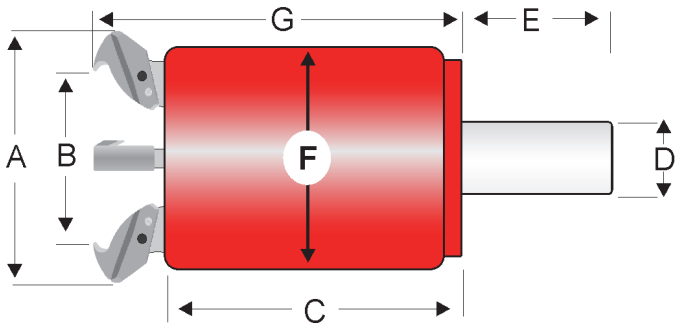

CLEARANCE DIMENSIONS
SBM Bar Pullers are shipped complete with 1 set of hard steel fingers and 1 bar support collar. (Mini Puller comes with 1.25” collar, Large Puller comes with 3” collar)
BAR PULLER ACCESSORIES

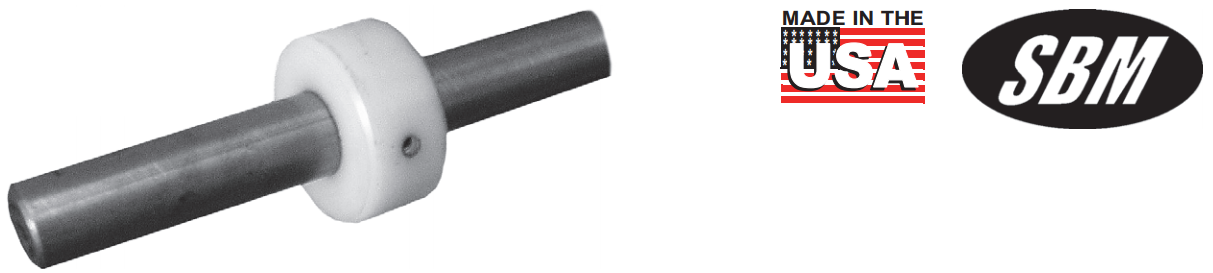

Bar Support Collars
Made from self-lubricating UHMW polyethylene!
Save Time-Stock Up on Additional Collars! To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

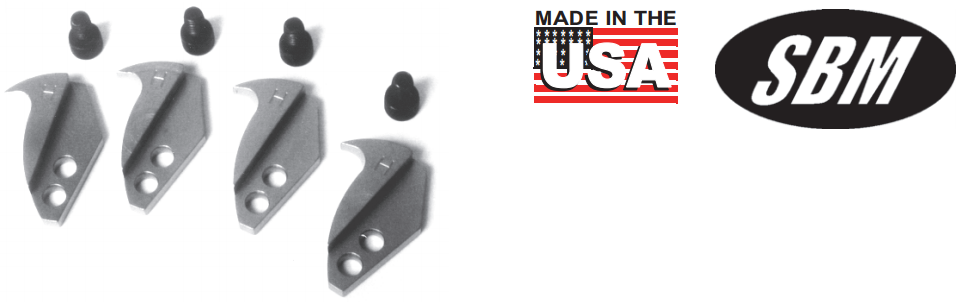

Replacement Fingers
are 100% compatible with “Omni™” bar pullers! To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Replacement Fingers (Set of 4)

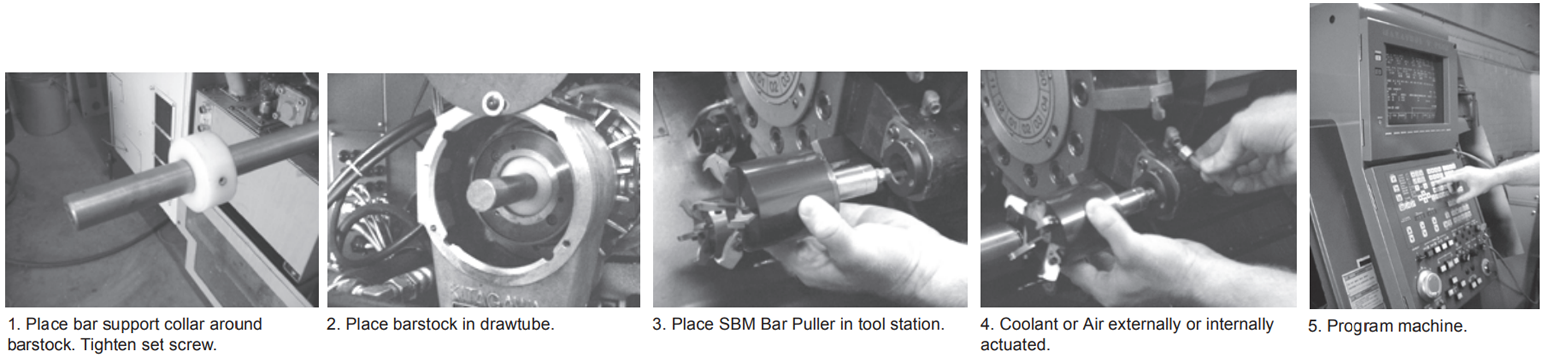

INSTALLATION
NOTE: It is important that under no circumstances should any length of bar be left sticking outside the drawtube. This can result in damage to the machine and injury to the operator.
Coolant or Air Actuated 2, 3 & 4 Finger Models
No Down Time-machine continues to run, freeing operator to work other jobs.
Self Adjusting & Self Releasing-After initial setting, no adjustment required for different sizes, and needs only 1/4” of bar length to pull bar!
2, 3 & 4 Finger Design-Holds round and square parts. Can also hold hex and flat parts with 2 fingers.
Pull Threaded or Delicate Material-Simply use the optional soft steel, aluminum, brass or delrin fingers.
Bar Can Be Pulled and Positioned Multiple Times for machining various sections of the part before cutoff.
Great for Sub-Spindle Lathes- use as a “pick and place” device for finished parts.
Quick Installation- comes complete with fingers and bar support collar...be “up and running” within 1 hour!
An Inexpensive And Simple Way To Automate Your CNC LatheAutomatically Pulls And Precisely Positions Bar Stock Through The Chuck, Eliminating Manual Loading And Unloading Of Each And Every Part!
Increase your PROFITS by $50,000-$100,000 per year!
RISK FREE GUARANTEE!
Use the SBM Bar Puller for 30 Days, and if you are not Completely Satisfied, you can return it for your money back...
No Questions Asked! To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Shank Type | # of Fingers | Part Number |
MINI BAR PULLER-1/8” to 1-1/8” Capacity | ||
5/8" Round | 4 | BU-MGA010 |
16mm Round | 4 | BU-MGAR16MM |
LARGE BAR PULLER-1/8” to 3-1/8” Capacity | ||
1" Round Shank | 2 | BU-GA1000-2 |
1" Round Shank | 3 | BU-GA1000-3F |
1" Round Shank | 4 | BU-GA1000 |
VDI 30 | 4 | BU-GA1000VDI-30 |
VDI 40 | 4 | BU-GA1000VDI-40 |
Size | Gripping Range | A | B | C | D | E | F |
Large Puller | 1/8” to 2 -1/2” 1st setting | 3 5/8” | 2 1/2” | 2 7/8” | Shank | 1 3/4” | 2 3/4” |
Large Puller | 3/4” to 3- 1/8” 2nd setting | 4” | 3 1/8” | 2 7/8” | Shank | 1 3/4” | 2 3/4” |
Mini Puller | 1/8” to 1 1/8” | 1 5/8” | 1 1/8” | 1 7/8” | Shank | 1 3/4” | 1 5/8” |
BAR PULLER ACCESSORIES
Bar Support Collars
Made from self-lubricating UHMW polyethylene!
Save Time-Stock Up on Additional Collars! To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Width | OD | Part Number |
3/4” | 1 1/4” | BU-COLLAR-1.25 |
3/4” | 2 1/2” | BU-COLLAR-2.50 |
3/4” | 3” | BU-COLLAR-3.00 |
are 100% compatible with “Omni™” bar pullers! To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Replacement Fingers (Set of 4)
Finger Type | Large Puller | Mini Puller |
Hard Steel | BU-GAFHS4 | BU-MGAFHS4 |
Soft Steel | BU-GAFSS4 | BU-MGAFSS4 |
Aluminum | BU-GAFAL4 | BU-MGAFAL4 |
Brass | BU-GAFBR4 | BU-MGAFBR4 |
Delrin | BU-GAFDL4 | BU-MGAFDL4 |
NOTE: It is important that under no circumstances should any length of bar be left sticking outside the drawtube. This can result in damage to the machine and injury to the operator.
