16C & 3J Round Collets

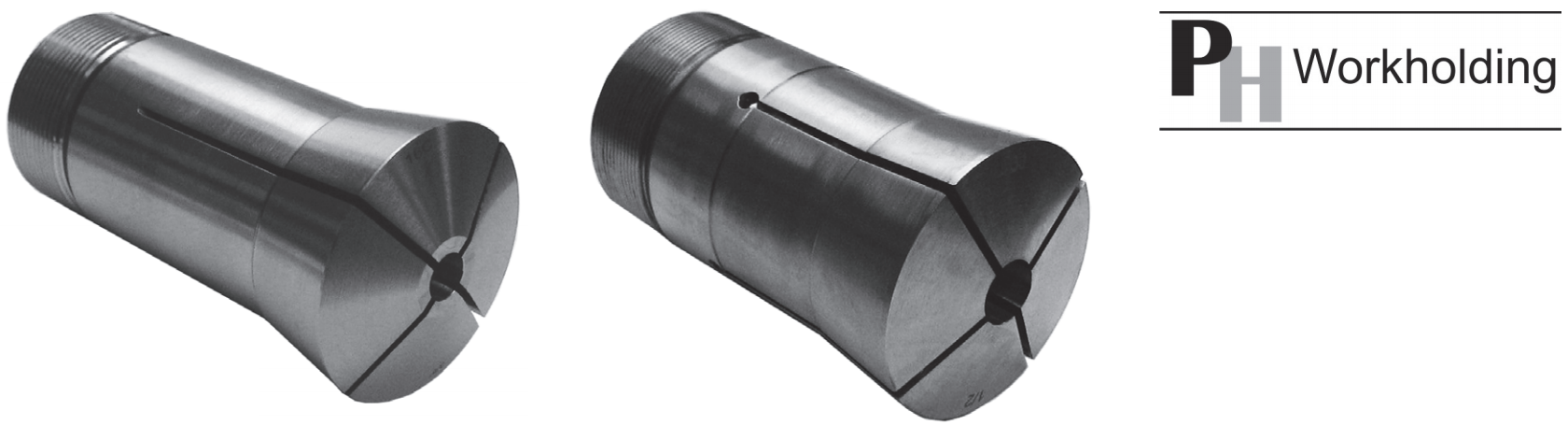

16C & 3J ROUND COLLETS
With Internal Threads
16C, 3J & 2J to 5C Adapters
Allows you to use 5C collets on your 16C, 3J or 2J Chucks!
FEATURES:
3J& 16C COLLET RACKS
FEATURES:
With Internal Threads
- Manufactured to exacting standards from alloy steel
- Heat treated threads and spring tempered body ensure accuracy and long life
- Large variety of fractional sizes available
- Size range:
16C Round: 1/16” to 1-5/8” x 64ths
3J Round: 1/16” to 1-3/4” x 64ths - Collets feature precision internal threads for threaded collet stops (except 1-5/8” 16C & 1-3/4” 3J sizes)
16C Round Smooth Collets
Size | Part Number |
1/16 | 16C-RI04-PH |
5/64 | 16C-RI05-PH |
3/32 | 16C-RI06-PH |
7/64 | 16C-RI07-PH |
1/8 | 16C-RI08-PH |
9/64 | 16C-RI09-PH |
5/32 | 16C-RI10-PH |
11/64 | 16C-RI11-PH |
3/16 | 16C-RI12-PH |
13/64 | 16C-RI13-PH |
7/32 | 16C-RI14-PH |
15/64 | 16C-RI15-PH |
1/4 | 16C-RI16-PH |
17/64 | 16C-RI17-PH |
9/32 | 16C-RI18-PH |
19/64 | 16C-RI19-PH |
5/16 | 16C-RI20-PH |
21/64 | 16C-RI21-PH |
11/32 | 16C-RI22-PH |
23/64 | 16C-RI23-PH |
3/8 | 16C-RI24-PH |
25/64 | 16C-RI25-PH |
13/32 | 16C-RI26-PH |
27/64 | 16C-RI27-PH |
7/16 | 16C-RI28-PH |
29/64 | 16C-RI29-PH |
15/32 | 16C-RI30-PH |
31/64 | 16C-RI31-PH |
1/2 | 16C-RI32-PH |
33/64 | 16C-RI33-PH |
17/32 | 16C-RI34-PH |
35/64 | 16C-RI35-PH |
9/16 | 16C-RI36-PH |
37/64 | 16C-RI37-PH |
19/32 | 16C-RI38-PH |
39/64 | 16C-RI39-PH |
5/8 | 16C-RI40-PH |
41/64 | 16C-RI41-PH |
21/32 | 16C-RI42-PH |
43/64 | 16C-RI43-PH |
11/16 | 16C-RI44-PH |
45/64 | 16C-RI45-PH |
23/32 | 16C-RI46-PH |
47/64 | 16C-RI47-PH |
3/4 | 16C-RI48-PH |
49/64 | 16C-RI49-PH |
25/32 | 16C-RI50-PH |
51/64 | 16C-RI51-PH |
13/16 | 16C-RI52-PH |
53/64 | 16C-RI53-PH |
27/32 | 16C-RI54-PH |
55/64 | 16C-RI55-PH |
7/8 | 16C-RI56-PH |
57/64 | 16C-RI57-PH |
29/32 | 16C-RI58-PH |
59/64 | 16C-RI59-PH |
15/16 | 16C-RI60-PH |
61/64 | 16C-RI61-PH |
31/32 | 16C-RI62-PH |
63/64 | 16C-RI63-PH |
1 | 16C-RI64-PH |
1-1/16 | 16C-RI68-PH |
1-1/8 | 16C-RI72-PH |
1-3/16 | 16C-RI76-PH |
1-1/4 | 16C-RI80-PH |
1-5/16 | 16C-RI84-PH |
1-3/8 | 16C-RI88-PH |
1-7/16 | 16C-RI92-PH |
1-1/2 | 16C-RI96-PH |
1-9/16 | 16C-RI100-PH |
1-5/8* | 16C-RI104-PH |
Emergency | 166-001S-PH |
3J Round Smooth Collets
UNIVERSAL COLLET ADAPTERSize | Part Number |
1/16” | 3J-RI04-PH |
5/64” | 3J-RI05-PH |
3/32” | 3J-RI06-PH |
7/64” | 3J-RI07-PH |
1/8” | 3J-RI08-PH |
9/64” | 3J-RI09-PH |
5/32” | 3J-RI10-PH |
11/64” | 3J-RI11-PH |
3/16” | 3J-RI12-PH |
13/64” | 3J-RI13-PH |
7/32” | 3J-RI14-PH |
15/64” | 3J-RI15-PH |
1/4” | 3J-RI16-PH |
17/64” | 3J-RI17-PH |
9/32” | 3J-RI18-PH |
19/64” | 3J-RI19-PH |
5/16” | 3J-RI20-PH |
21/64” | 3J-RI21-PH |
11/32” | 3J-RI22-PH |
23/64” | 3J-RI23-PH |
3/8” | 3J-RI24-PH |
25/64” | 3J-RI25-PH |
13/32” | 3J-RI26-PH |
27/64” | 3J-RI27-PH |
7/16” | 3J-RI28-PH |
29/64 | 3J-RI29-PH |
15/32 | 3J-RI30-PH |
31/64 | 3J-RI31-PH |
1/2 | 3J-RI32-PH |
33/64 | 3J-RI33-PH |
17/32 | 3J-RI34-PH |
35/64 | 3J-RI35-PH |
9/16 | 3J-RI36-PH |
37/64 | 3J-RI37-PH |
19/32 | 3J-RI38-PH |
39/64 | 3J-RI39-PH |
5/8 | 3J-RI40-PH |
41/64 | 3J-RI41-PH |
21/32 | 3J-RI42-PH |
43/64 | 3J-RI43-PH |
11/16 | 3J-RI44-PH |
45/64 | 3J-RI45-PH |
23/32 | 3J-RI46-PH |
47/64 | 3J-RI47-PH |
3/4 | 3J-RI48-PH |
49/64 | 3J-RI49-PH |
25/32 | 3J-RI50-PH |
51/64 | 3J-RI51-PH |
13/16 | 3J-RI52-PH |
53/64 | 3J-RI53-PH |
27/32 | 3J-RI54-PH |
55/64 | 3J-RI55-PH |
7/8 | 3J-RI56-PH |
57/64 | 3J-RI57-PH |
29/32 | 3J-RI58-PH |
59/64 | 3J-RI59-PH |
15/16 | 3J-RI60-PH |
61/64 | 3J-RI61-PH |
31/32 | 3J-RI62-PH |
63/64 | 3J-RI63-PH |
1 | 3J-RI64-PH |
1-1/16 | 3J-RI68-PH |
1-1/8 | 3J-RI72-PH |
1-3/16 | 3J-RI76-PH |
1-1/4 | 3J-RI80-PH |
1-5/16 | 3J-RI84-PH |
1-3/8 | 3J-RI88-PH |
1-7/16 | 3J-RI92-PH |
1-1/2 | 3J-RI96-PH |
1-9/16 | 3J-RI100-PH |
1-5/8 | 3J-RI104-PH |
1-11/16 | 3J-RI108-PH |
1-3/4* | 3J-RI112-PH |
Emergency | 360-001S-PH |

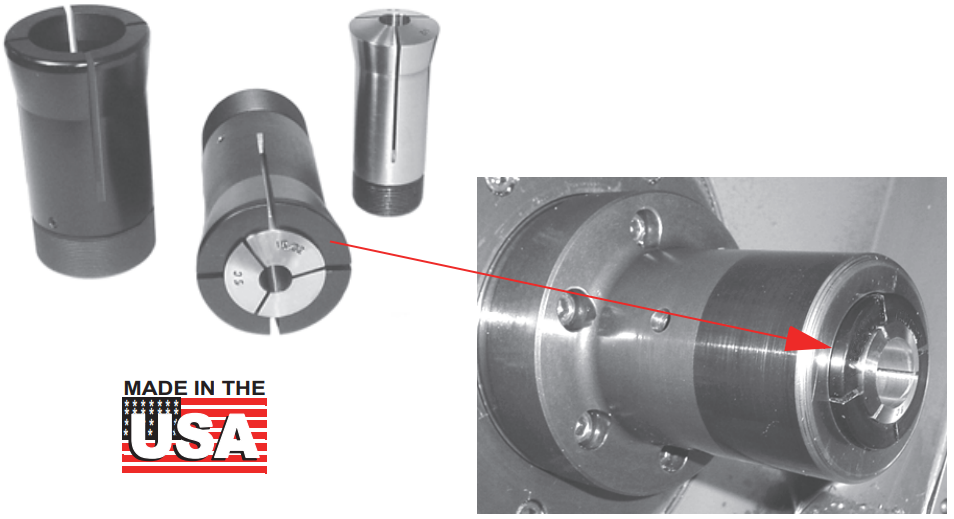

16C, 3J & 2J to 5C Adapters
Allows you to use 5C collets on your 16C, 3J or 2J Chucks!
FEATURES:
- Available to adapt 5C collets for use in 16C, 3J & 2J collet chucks
- Manufactured from 1144 Steel
- TIR 0.0005
- Made in the USA
Description | Part Number |
16C to 5C Adapter | VIC-16CTO5C |
3J to 5C Adapter | VIC-3JTO5C |
2J to 5C Adapter | VIC-2JTO5C |

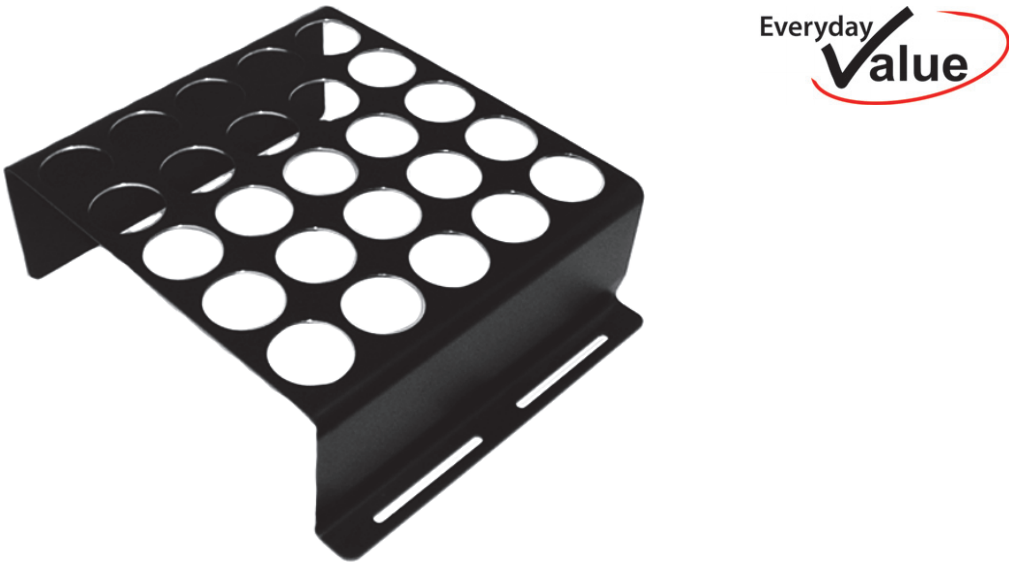

FEATURES:
- Protects & organizes your valuable collets
- Sturdy steel construction
- Available for 3J & 16C collets
- 25 holes
Description | Part Number |
3J Collet Tray | TRAY-125-3J |
16C Collet Tray | TRAY-125-16C |
