AF Straight Shank Holders

AF Series Collet Extensions

Fits Acura-Flex™ (AF) collets
Crafted from heat treated alloy steel
Available with round shank
Supplied with hex collet nut

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

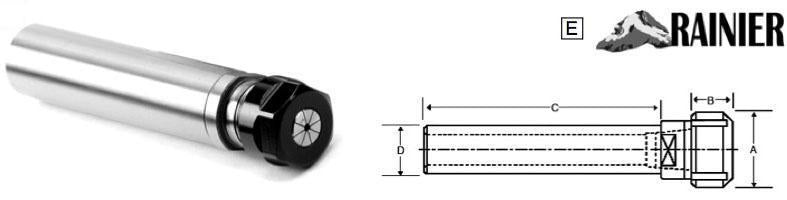

Collet Series	Shank D	C	Nut Dia	Length of Nut	Type of Nut	Shank Type	Part Number	Collet Nut Part Number	Thread of Nut	Nut Industry Reference #
AF25	0.500	5.50	0.73	0.54	HEX	Round	S-A25R05-55H-R	CN-AF25H	9/16-28	C9400022
AF25	0.750	5.50	0.73	0.54	HEX	Round	S-A25R07-55H-R	CN-AF25H	9/16-28	C9400022
AF38	0.625	4.00	1.06	0.62	HEX	Round	S-A38R06-40H-R	CN-AF38H	13/16-12	C9400002
AF38	0.750	4.00	1.06	0.62	HEX	Round	S-A38R07-40H-R	CN-AF38H	13/16-12	C9400002
AF38	0.750	5.50	1.06	0.62	HEX	Round	S-A38R07-55H-R	CN-AF38H	13/16-12	C9400002
AF50	0.750	4.00	1.34	0.69	HEX	Round	S-A50R07-40H-R	CN-AF50H	1"-12	C9400020
AF50	0.750	6.00	1.34	0.69	HEX	Round	S-A50R07-60H-R	CN-AF50H	1"-12	C9400020
AF50	1.000	4.00	1.34	0.69	HEX	Round	S-A50R10-40H-R	CN-AF50H	1"-12	C9400020
AF50	1.000	6.00	1.34	0.69	HEX	Round	S-A50R10-60H-R	CN-AF50H	1"-12	C9400020
AF75	1.000	4.50	1.96	1.06	HEX	Round	S-A75R10-45H-R	CN-AF75H	1-1/2"-12	C900005
AF75	1.250	5.50	1.96	1.06	HEX	Round	S-A75R12-55H-R	CN-AF75H	1-1/2"-12	C900005
AF100	1.250	5.00	2.48	1.19	HEX	Round	S-A10R12-50H-R	CN-AF100H	2"-12	C940021
AF100	1.500	6.50	2.48	1.19	HEX	Round	S-A10R15-65H-R	CN-AF100H	2"-12	C940021
