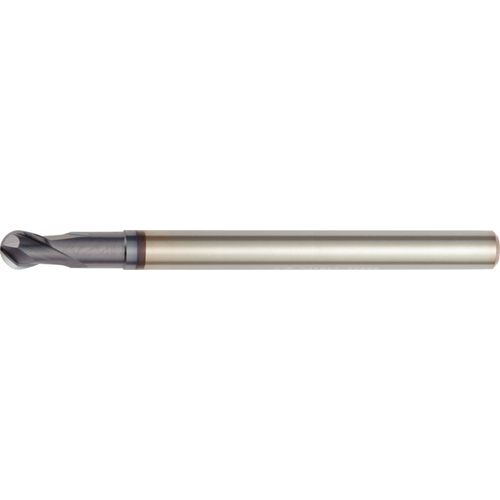

3 mm Dia. × 6 mm Shank × 3 mm DOC × 76 mm OAL, Carbide TiAlN, 2 Flute, 30°|CW Helix, Round, External , Ballnose End Mill
Item #: WK402545213
Brand: Widia
Model #: 2545213
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| Usable Length (LU) | 9 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Applicable Material | Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Depth of Cut Maximum (APMX) | 3 mm |
| Corner Radius (RE) | 1.5 mm |
| Overall Length (OAL) | 76 mm |
| Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | TiAlN |
| Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 |
| Style | 82-06 SEM Ball Nose Side-Cntr |
| Flute Helix Angle (FHA) | 30 Degrees|CW |
| Decimal Equivalent | 0.1181″ |
| Shank Type | Round |
